Fiber Patch Cables and Pigtails

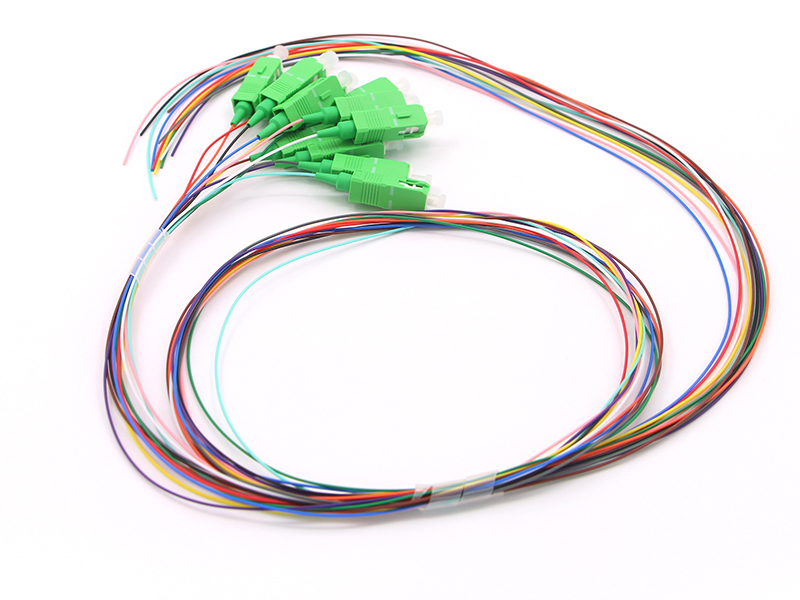

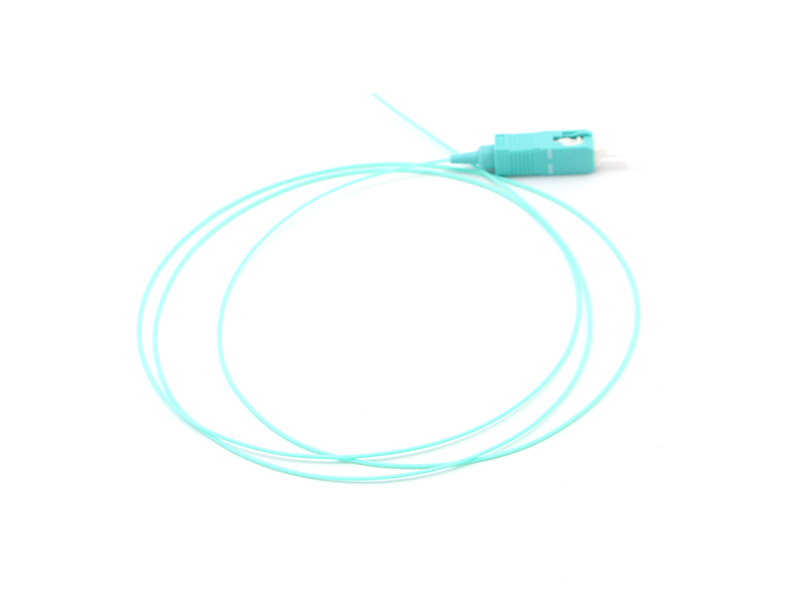

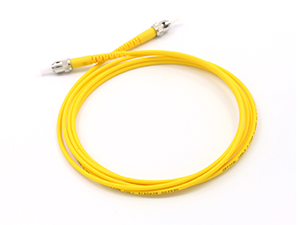

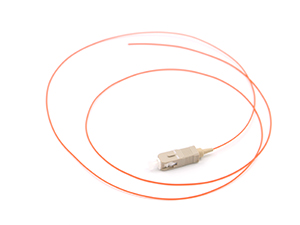

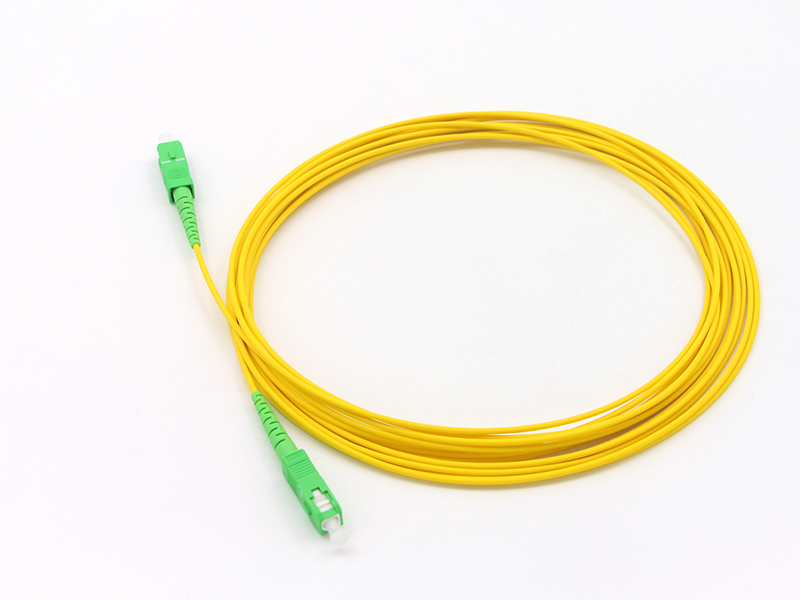

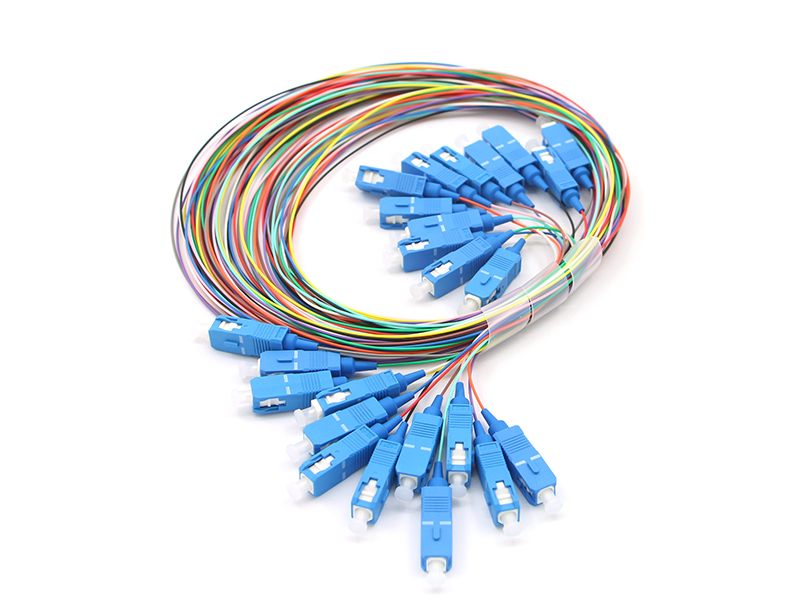

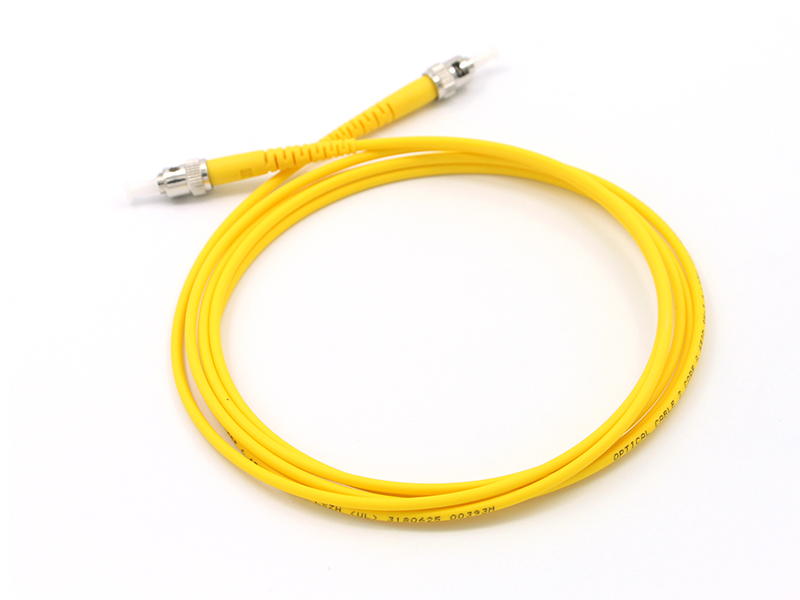

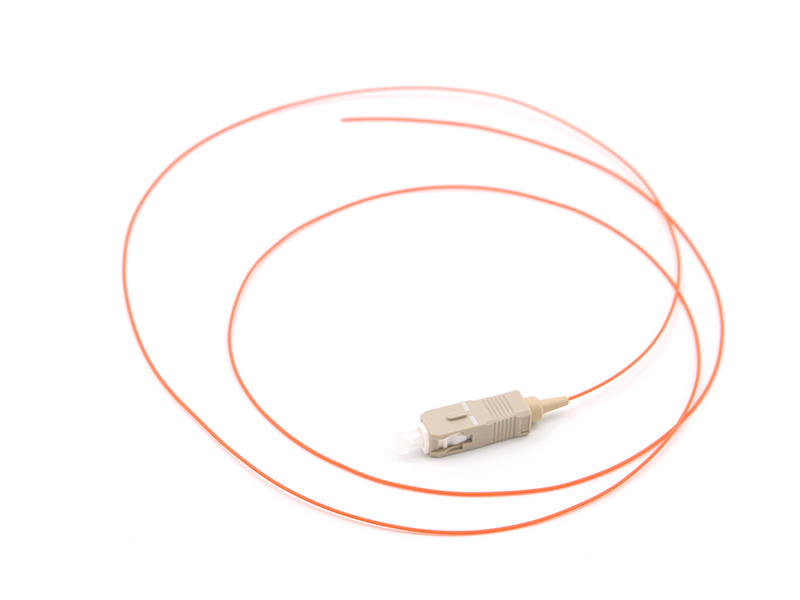

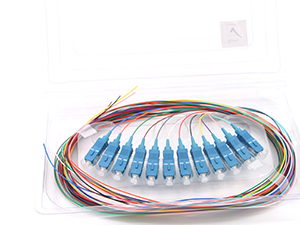

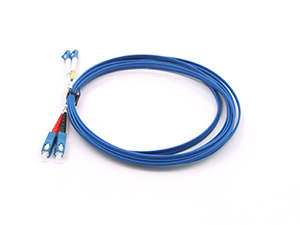

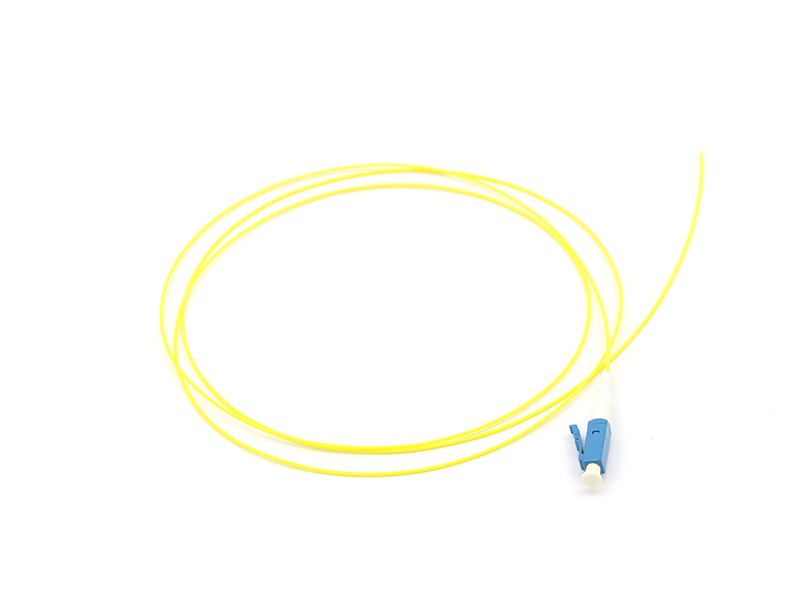

We offer single-mode and multi-mode optical fiber patch cables and pigtails with different connector types including SC, LC, FC, ST, MPO, MU, DIN, D4, E2000, etc. The inserted cores are made of ceramic and are covered with a highly stable outer jacket. Both fiber patch cords and pigtails are in line with GR-326 and UL94-V0 standards.

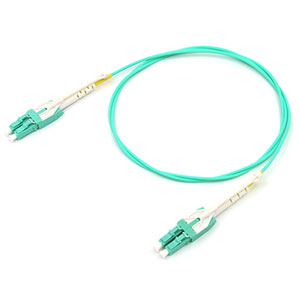

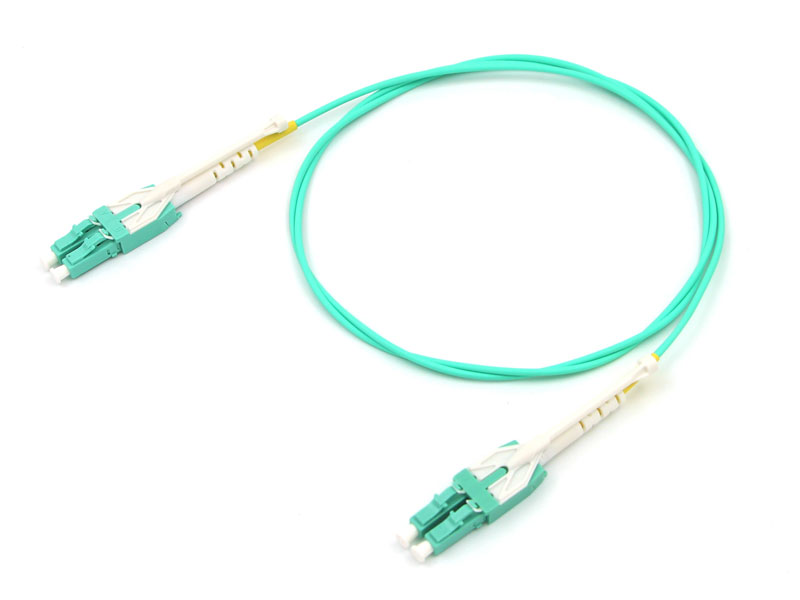

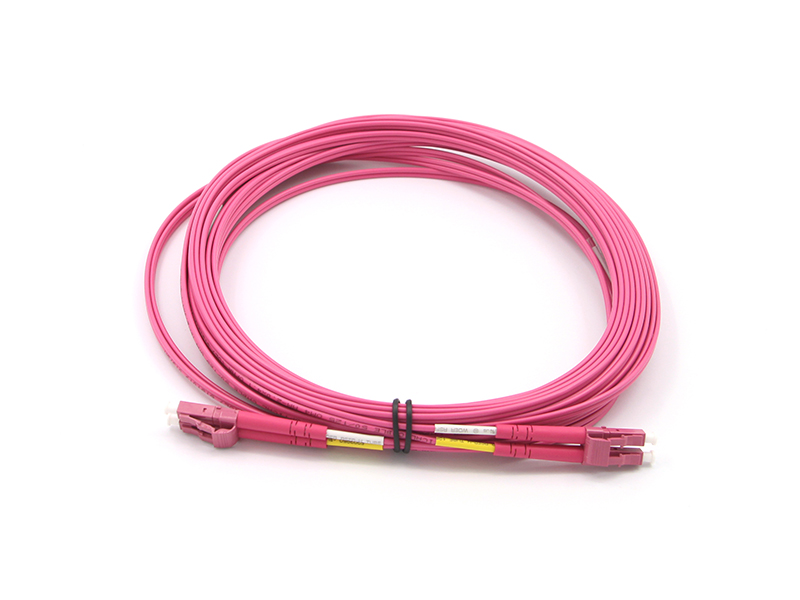

Switchable Uniboot LC Duplex Fiber Patch Cable
The switchable Uniboot LC patch cable is designed to do away with cabling congestion and provide simplified patch cord management as well as installation. It also saves cabling space.
Features- Fiber polarity A -> A or A -> B can be switched by installer
- Thin round cable
- Single boot duplex connectors for easy installation
- Standard compatible, simplex/duplex LC connectors
- Other options: SC / FC
- Customized patch cord length
- Two notches on the connectors for simple installation/uninstallation
- Mini and flexible boots are available and the boot can be turned to any angle
- Quick deployment reduces installation time
- Fast upgrading supports parallel transmission system
- Outer jacket material options: PVC, LSZH and other materials
| Single mode | Multimode | |
| Insertion Loss | ≤0.30 dB | ≤0.30 dB |
| Return Loss | ≥50 dB (PC) , ≥60 dB (APC) | / |
| Durability | < 0.20 dB typical change, 1000 matings | / |
| Operating Temperature | -40 to + 85°C | -40 to + 85°C |

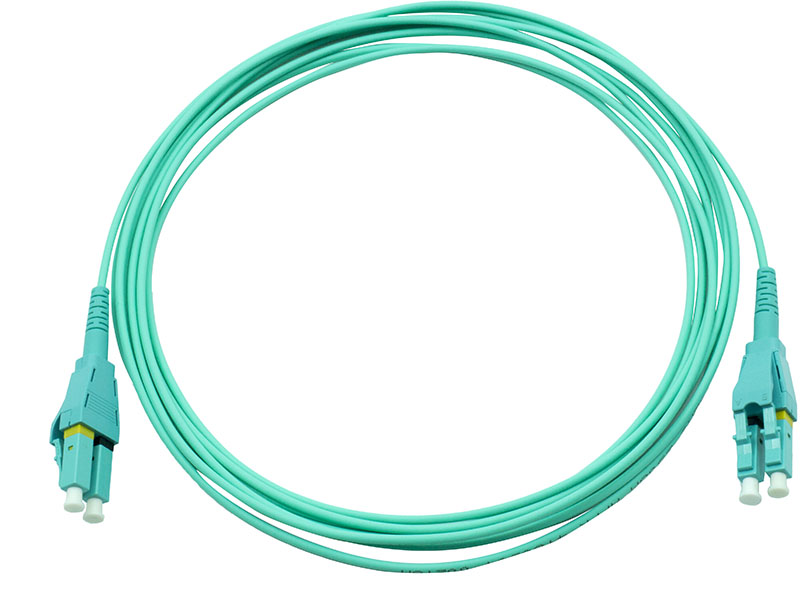

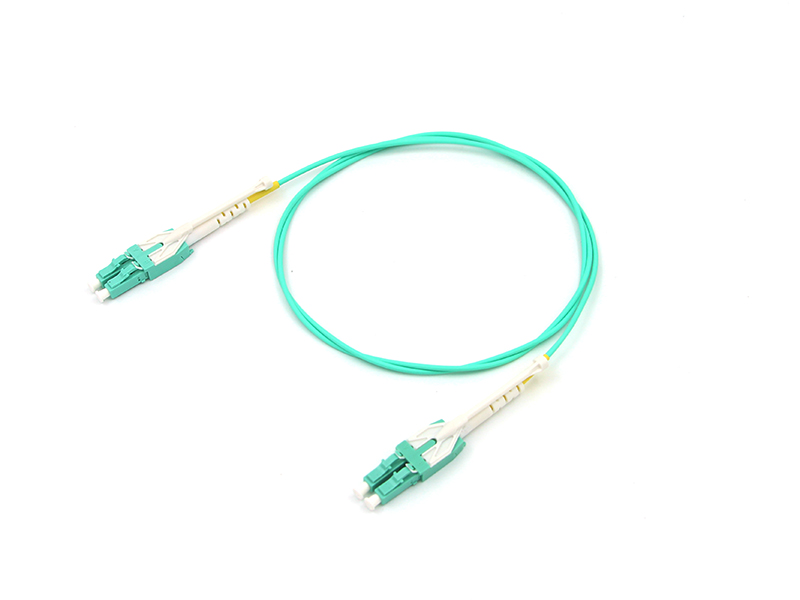

High Density LC Duplex Uniboot Patch Cable
This High-Density LC Duplex Uniboot Patch Cord was specially designed for high-density fiber patch panels. The highly flexible duplex cable reduces cable congestion and can be plugged in and out of the panel easily and quickly so as to enable convenient management and installation.
Features- Thin round cable
- Duplex LC with latched uniboot, easy to plug in and out among panels
- Standard compatible, duplex LC connectors
- High transmission, 100% tested under IEC standards
- Quick deployment reduces installation time
- Fast upgrading supports parallel transmission system
- Outer jacket material options: PVC, LSZH and other materials
- Fiber type: ODNR, OFNP
- Customized patch cord length
| Single mode | Multimode | |
| Insertion Loss | ≤0.30 dB | ≤0.30 dB |
| Return Loss | ≥50 dB (PC) , ≥60 dB (APC) | / |
| Durability | < 0.20 dB typical change, 1000 matings[W用1] | / |
| Operating Temperature | -40 to + 85°C | -40 to + 85°C |

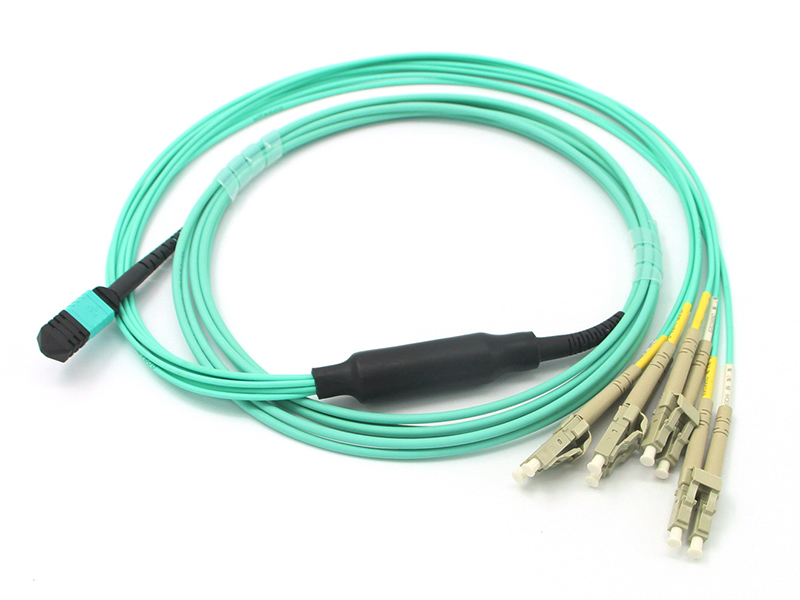

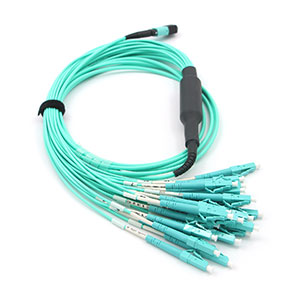

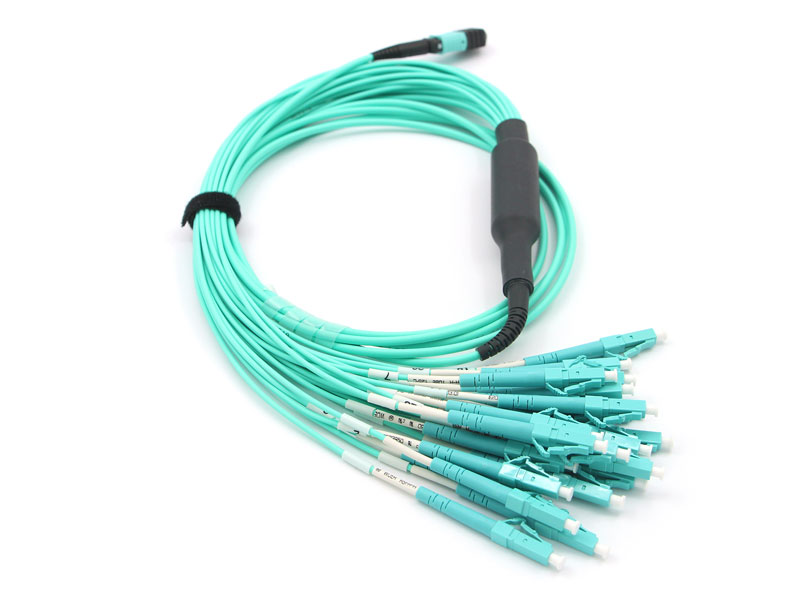

MTP/MPO LC Fan-out Patch Cable
The fan-out patch cable is applied for the connection of 12-core MTP / MPO connectors with the LC connectors on the trunk cable. KOC provides both standard and customized branch lengths. When the network equipment is close to MTP patch panel frames, the length of fan-out patch cords will be minimized. For the hardware and equipment in the same cabinet, the longer patch cords can fit in any location, and the branch cables can be conveniently wound into the vertical cable organizer.
Features- Array connectors with high precision and low loss
- Smooth upgrading to next generation data center for 40GbE and 100GbE
- Outer jacket material options: PVC, LSZH and other materials
- Cable flammability rating: OFNR, OFNP, and LSZH
| Single mode | Multimode | |||
| MTP / MPO | LC | MTP / MPO | LC | |
| Insertion Loss | ≤0.30 dB | ≤0.3 dB | Low loss ≤0.35 dB | ≤0.3 dB |
| Standard Loss ≤ 0.7 dB | Standard Loss ≤0.5 dB | |||
| Return Loss | ≥60 dB | ≥50 dB | ≥30 dB | ≥30 dB |
| Durability | < 0.2typical change, 500 matings | |||
| Operating Temperature | -40 to + 85°C | |||

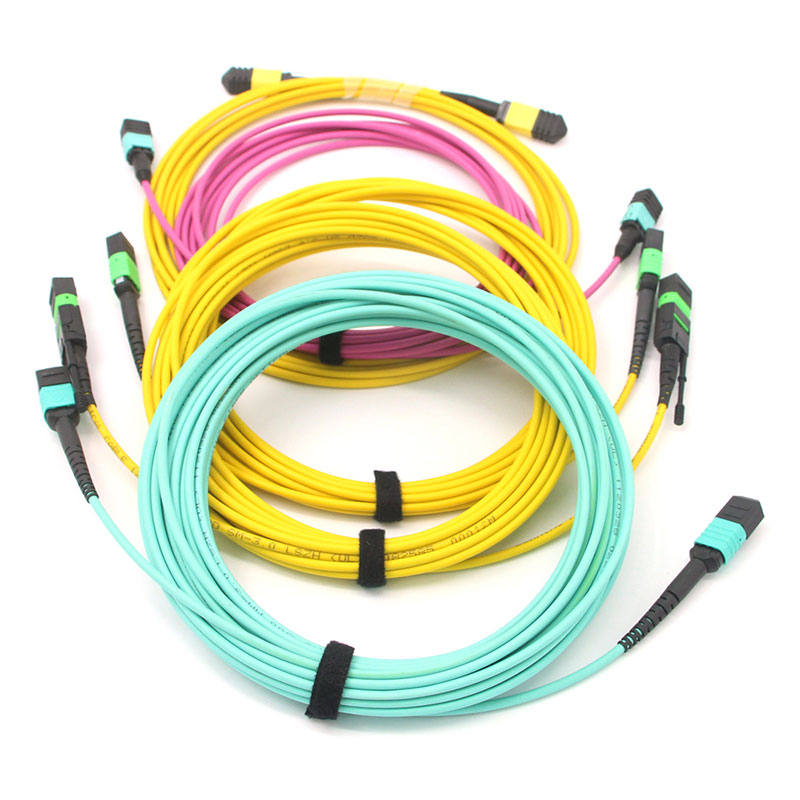

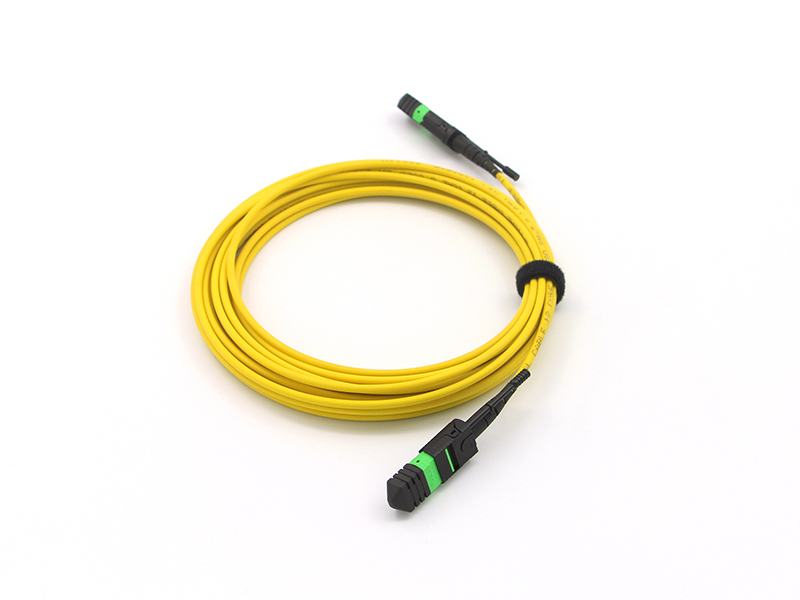

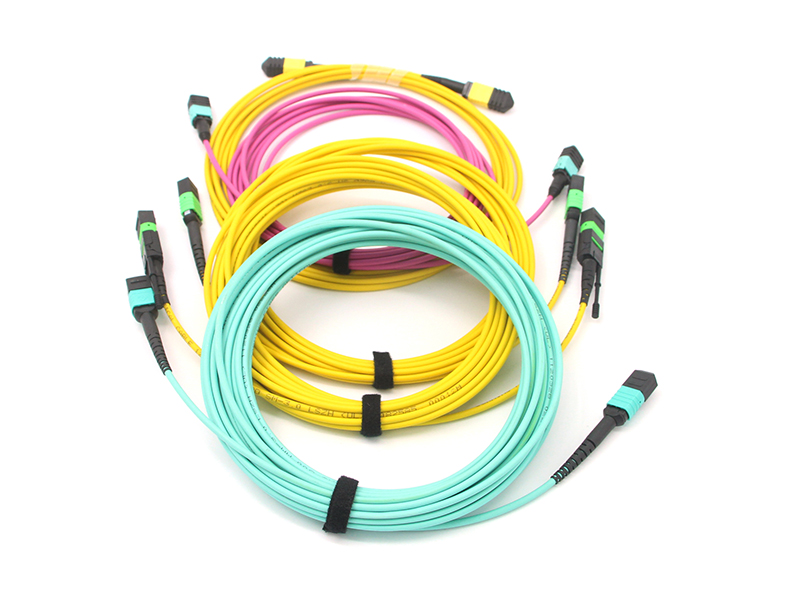

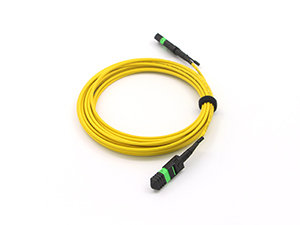

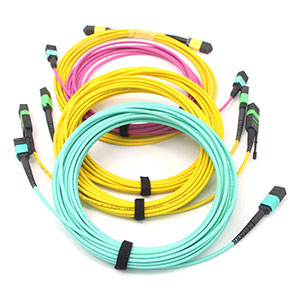

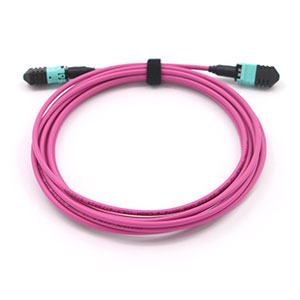

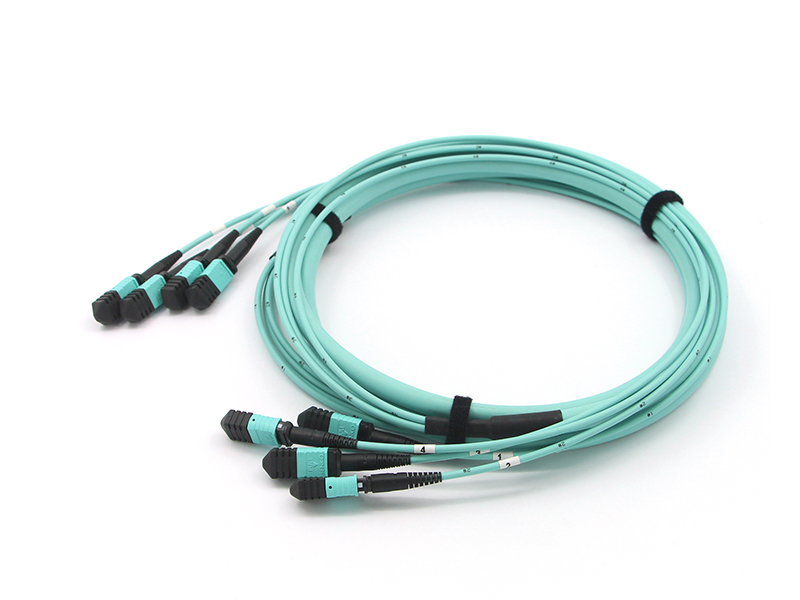

MTP/MPO Trunk Fiber Optic Cable Patch Cable
The pre-terminated trunk cable can be made with 4 to 144 cores, available with 8/12-pin MTP connector at both ends. High-quality cable and MPO connector kits guarantee low insertion loss and high return loss for high-speed network. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug and play modules or MTP / MPO patch panels to achieve multi-level extension connections. The extended trunk cable is capable of connecting with another patch panels or fan-out patch cords.
Features- Array of connectors with high precision and low loss MTP / MPO connectors
- MTP/MPO connectors that have been assembled at both ends of the cable. The optical performance is 100% tested
- A B C three polarity wiring options
- Sufficient capacity that can provide 4-144 cores fiber connections
- Cable flammability rating: OFNR, OFNP, and LSZH
- The length of customized cable, trunk cable, extension cable, branch cable is accurate
- Optional traction tube for easy on-site installation
- Minimizes failure and reduces cabling space and time of installation
- Smooth upgrading to next generation data centers for 40GbE and 100GbE
- Outer jacket material options: PVC, LSZH, and more
| Single mode | Multimode | |
| Insertion Loss | Low loss≤0.35 dB | Low loss≤0.35 dB |
| Standard loss≤0.7 dB | Standard loss≤0.5 dB | |
| Return loss | ≥60 dB | ≥30 dB |
| Operating Temperature | -40℃~+85℃ | |
| 40G | 40G 8 Fiber | |
| 100G | 100G 20 Fiber | |

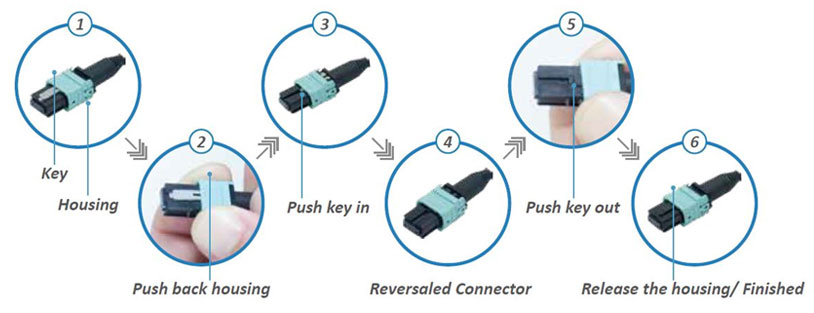

MPO Polarity Changeable Patch Cord
Features- Minimal insertion and back reflection loss
- Switch polarity in the field without any tool
- Simple gender change without taking off the housing
- Good exchangeability
- Good Durability
- High temperature stability
- Various boot types available
- Standard: Telcordia GR-1435-CORE
| Item | Single mode | Multimode | ||
| Standard | Low loss | Standard | Low loss | |
| Insertion Loss | ≤0.75 dB typical≤0.5 dB | ≤0.35 dB typical≤0.2 dB | ≤0.5 dB typical≤0.35 dB | ≤0.35 dB typical≤0.2 dB |
| Return Loss | ≥60 dB (APC) | ≥30 dB (PC) | ||
| Repeatability | ≤0.1dB | |||
| Durability | < 0.2typical change, 500 matings | |||
| Interchangeability | ≤0.2dB | |||
| Tensile strength | >70N | |||
| Operating Temperature | /-40 to + 85°C | |||
