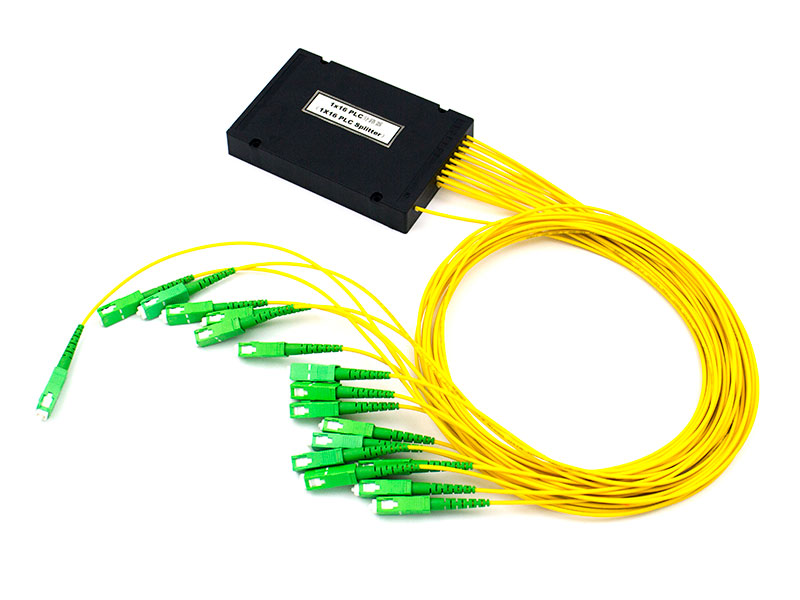

Planar Lightwave Circuit (PLC) Splitter

We produce various types of PLC (Planar Lightwave Circuit) that cover a wide wavelength range from 1260nm to 1620nm and can operate within a temperature range from -40ºC to +85ºC. KOC PLC splitters come in the standard 1x4, 1x8, 1x16 and 1x32 configurations as well as customized structures of 2x16, 2x32 and so on, depending on your system’s requirements.

Features

Compact structure, low cost
Good stability
Wavelength range: 1260nm ~ 1650nm.

Specifications

Port Configuration	1×2	1×4	2×4	1×8	2×8	1×16	2×16	1×32	2×32	1×64
Operating Wavelength (nm)	1260~1650
PDL(dB)	< 0.2	< 0.3								< 0.5
Directivity (dB)	>55
Return Loss (dB)	>55
Operating Temperature Range (℃)	-40~+85
Storage Temperature Range(℃)	-40~+85
Fiber Type	G652D OR G657A
Channel Number	1×2	1×4	2×4	1×8	2×8	1×16	2×16	1×32	2×32	1×64
Insertion Loss(dB)	≤ 4.3	≤ 7.20	≤ 7.5	≤ 10.5	≤ 11.2	≤ 13.6	≤ 14.6	≤ 17.0	≤ 17.5	≤ 21
Loss Uniformity (dB)	≤ 0.5	≤ 0.6	≤ 1.2	≤ 0.8	≤ 1.5	≤ 1.4	≤ 2.0	≤ 1.6	≤ 2.5	≤ 2.5
Package Size(L×W×H) (mm)	40×4 ×4.0		45×4.5 ×4.0	40×4 ×4.0	45×4.5 ×4.0	45×4.5 ×4.0	60×7.0 ×4.0	50×7.0 ×4.0	65×7.0 ×4.0	60×12×4.0
0.9mm Tight Buffer Fiber Cable Package Size (L×W×H) (mm)	50×7.0 ×4.0		60×7.0 ×4.0	60×7 ×4.0	60×12 ×4.0	60×12 ×4.0	80×12 ×4.0	80×20 ×6.0	90×20 ×6.0	100×40×6.0
