ONU for Gigabit Passive Optical Network (GPON)

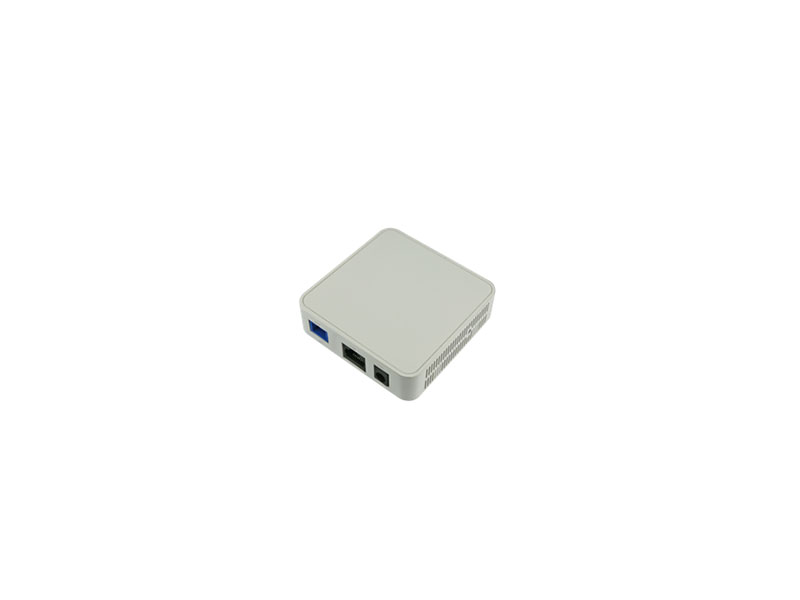

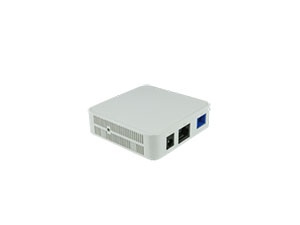

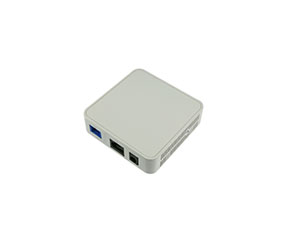

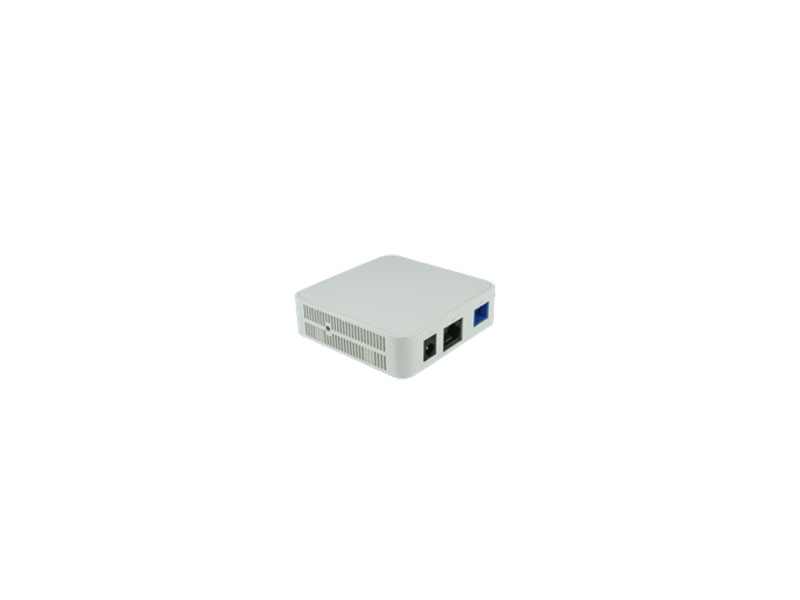

KOC-G600-100U Optical Network Unit
Our optical network units are bidirectional and specially developed for GPON broadband networks while accommodating all FTTH/FTTO (Fiber to the home) network topologies. Supporting GPON links of up to 20km, the devices integrate with the OLT devices from mainstream telecom manufacturers such as Huawei, ZTE, Fiberhome and Alcatel-Lucent, giving them a high bandwidth and efficiency, allowing them to cover a wide array of users. They provide the ideal technology for operators to move their business to broadband and are in line with ITU-T and IEEE standards, which ensures we offer the best network services.
- Compatible with ITU-T G.984.1/2/3/4, GPON upstream transmission
- Downstream rate 2.448Gbit/s, upstream rate 1.244Gbit/s
- Up to 32 TCONT and 128 GEMPORT
- Two-way FEC, RS(255 ,239) FEC coding and decoding
- G.984 PLOAM, embedded OMCI management
- Dying-Gas detection and report
- Continuous-mode ONU detection
- GPON energy saving based on G987.3
- Tag/Untag Ethernet frame of 802.3 and 802.1Q support, QinQ support
- Tag management, CTC3.0 management
- Flexible flow classification, maximum 520 flow classification rules
- Error monitoring and loop monitoring
- Multiple multicast forwarding, multicast replication
- Auto-negotiation and hand-setting of Ethernet support rate and duplex mode
- The UNI ports support STP/RSTP
- QoS guarantee by SLA(service level agreement) constraint, policing, queue management and scheduling, congestion avoidance, discard management
- Inlet flow control, backpressure of pack Pause
- HQoS functions
| Port | PON | 1×FSAN G.984.2 GPON port Downstream: 2.488Gbps; Upstream: 1.244Gbps SC/PC single mode fiber 28dB link（FSAN Class B+） A maximum reach of 20km Split ratio: 1:128 |
| Ethernet | 1×10/100/1000M adaptive Ethernet port Full-duplex/Half-duplex RJ45 (electrical), Direct cross-connections Maximum reach 100m | |
| Power interface | 12V DC | |
| Performance | PON interface (applicable to the PON modules provided by our company) | Wavelength: upstream 1310nm，downstream 1490nm TX power range: 0.5～5dBm RX sensitivity: -28dBm Saturated RX power: -8dBm |
| Data transmission | PON handling capacity: downstream 2.488Gbit/s; upstream 1.244Gbit/s Ethernet port: 1000Mbps Packet loss rate: <1*10E-12 Delay: <1.5ms | |
| Management | Mode | OMCI management based on G.984.4 WEB management |
| Security | Status monitoring, configuration management, alarm management, log management | |
| Physical property | Rack | White plastic rack |
| Power Supply & Consumption | External power adapter: 12V/0.5A DC Consumption: <3W | |
| Size, Weight | Size: 78mm(L) x 78mm(W) x25mm (H) Net weight: 0.1kg | |
| Environment | Operating Tem.: 0～50℃ Storage Tem.: -40～85℃ Operating humidity: 10%～90%(non-condensing) Storage humidity: 10%～90%(non-condensing) |

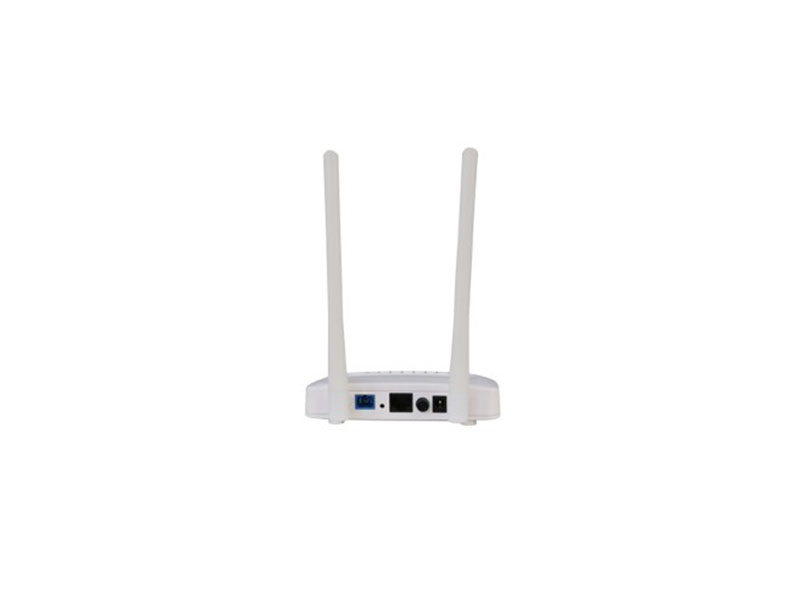

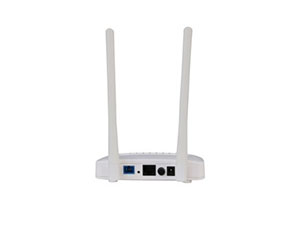

KOC-G600-100W Optical Network Unit
These optical network units are designed to accommodate all FTTH/FTTO (Fiber to the home) technologies. They adhere to IEEE802.11 n/b/g GPON standards, and have a high bandwidth, high efficiency and wide coverage range. They offer complete QoS support including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control. Their signal has a strong penetration and covers a large area, thus enhancing the data transmission security.
- Compatible with ITU-T G.984, GPON upstream transmission
- ONU automatic discovery/link detection/remote upgrade
- Wi-Fi devices are in line with IEEE802.11 n/b/g
- Configuring transparent transmission of VLAN packets, tag configuration
- Multicast stream
- DHCP/Static/PPPOE configuration
- Port binding
- OAM+TR069 management
- Data encryption and decryption
- DBA(dynamic bandwidth allocation)
- MAC filtering and URL access control
- Centralized management based on SNMP protocol and EMS
- Complete alarming function
| Port | PON | 1×FSAN G.984.2 GPON port Downstream: 2.488Gbps; Upstream: 1.244Gbps SC/PC Single mode fiber 28dB link（FSAN Class B+） A maximum reach of 20km Split ratio: 1:128 |
| Ethernet | 1×10/100/1000M adaptive Ethernet interface Full-duplex/Half-duplex RJ45(electrical), RJ45 (electrical), Direct cross-connections Maximum reach 100m | |
| Power supply | 12V DC | |
| Performance | PON interface (applicable to the PON modules provided by our company) | Wavelength: upstream 1310nm, downstream 1490nm TX power range: 0.5～5dBm RX sensitivity: -28dBm Saturated RX power: -8dBm |
| Data transmission | PON handling capacity: upstream 2.488Gbit/s; downstream 1.244Gbit/s Ethernet port: 1000Mbps Packet loss rate: <1*10E-12 Delay: <1.5ms | |
| Management | Mode | OMCI management based on G.984.4 TR-O69 remote management and WEB management |
| Security | Status monitoring, configuration management, alarm management, log management | |
| Physical property | Rack | White plastic rack |
| Power Supply & Consumption | External power adapter: 12VDC/0.5A | |
| Consumption: < 4W | ||
| Size, Weight | Size: 125×80×28mm Net weight: 0.2kg | |
| Environment | Operating Tem.: 0～50℃ Storage Tem.: -40～85℃ Operating humidity: 10%～90%(non-condensing) Storage humidity: 10%～90%(non-condensing) |
| Performance Index | Operating mode | Route mode and bridge mode |
| Standard | IEEE802.11b/g/n | |
| Frequency domain | 2.412 ~ 2.472 GHz | |
| Antenna gain | 5dBi | |
| Support rate | 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps 802.11n: Maximum 300Mbps | |
| Wireless channel | 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 | |
| Modulation mode | 11b: DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps) 11g: OFDM: BPSK(6/9Mbps), QPSK(12/18Mbps), 16QAM(24/36Mbps), Q64QAM(48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM | |
| RX sensitivity | 11Mbps: ≤-90dBm 54 Mbps: ≤-76dBm HT20 MCS7: ≤-73dBm HT40 MCS7: ≤-70dBm | |
| Transmitted power | 802.11n: 17dBm | |
| Encryption | AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK |
