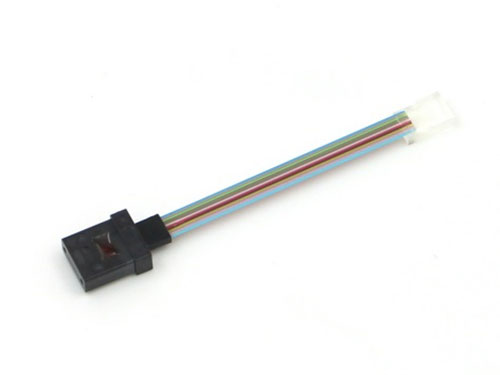

MT - Fiber Array Assembly
Features
Specifications- GR-1435, GR-1221 compliant
- Transmission mode: multi-channel, both serial and parallel
- High accuracy
- Support：12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G，8X10G, 8X25G, 8X50G, 8X100G
- Coupling Mode: Active coupling with light source and 0~ 45 degrees. Passive coupling with guide pins and 90 degrees
- IL/RL Specifications: MT IL ≤0.60 dB typical 0.20 dB MT RL ≥20 dB
- Environment requirement: -40℃~＋85℃
| Connector A | MT Ferrule with guide pin |
| Connector B | FA, customized size/angle available |
| Fiber shape | Ribbon/single fibers |
| Fiber count | 2F/4F/8F/12F/16F/24F |
| Fiber type | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
| Length | 20~100mm, customized length available |
| Length tolerance | +500um/-0um |
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
