Fiber Distribution Box

Fiber Distribution Box
Fiber Distribution Box Fiber Distribution Box Fiber Distribution Box

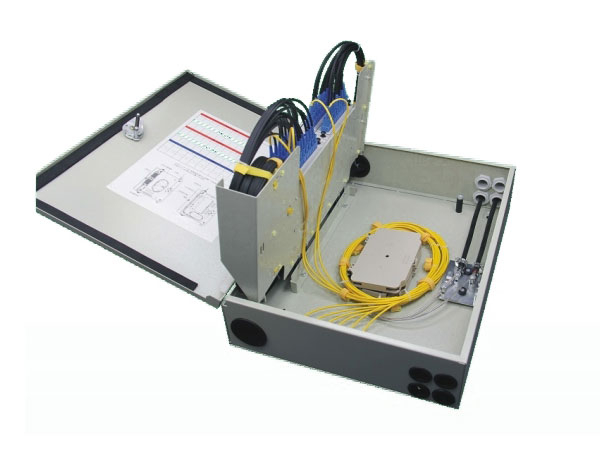

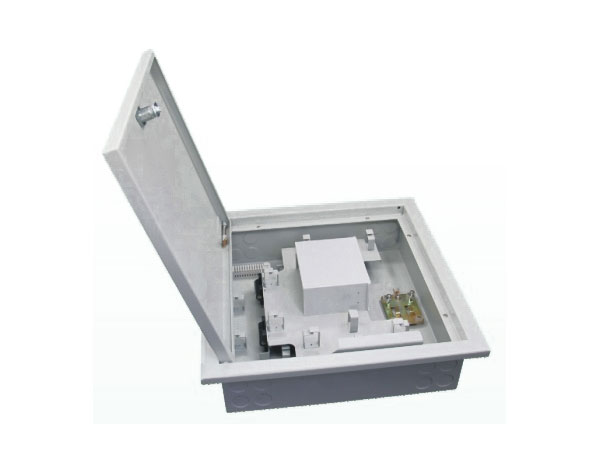

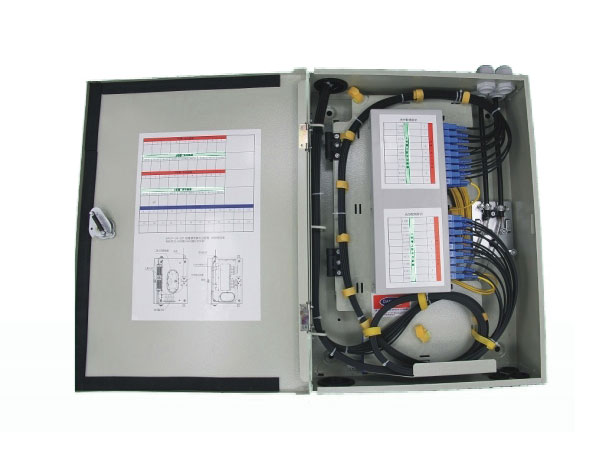

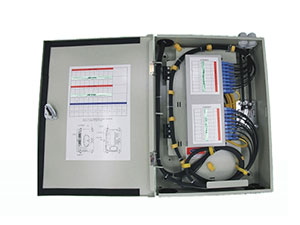

We provide fiber distribution boxes that are suitable for small capacity communications systems. These boxes feature compact structures and can handle wall mounting.

The fiber distribution box is divided into two parts. One is linked with optical cables for fusion connection between the optical cable and fiber pigtail and the other links with a patch cord.

Both fusion and storage functions are compatible with optical cables.

The protective design of the cabinet ensures the fiber cables have a bending radius of ≥40mm

Fiber protection accessories are provided to avoid unexpected damage

Features
  • Indoor application
  • Fiber splice, optical splitter, cable storage
  • Max. Capacity: 72 fibers
  • Can be customized
Specifications
Model Size(mm) Capacity (core) Note
KWMSB-D /A-24 455*405*80 24 The case body is made of cold rolled steel with electrostatic spraying making it suitable for outdoor wall mounting. we provide 24-72 adaptors that are available for SC/ST/LC
KWMSB-D /A-48 455*405*120 48
KWMSB-D /A-72 455*405*150 72
KWMSB-D /B-48 455*405*120 48
KWMSB-D /B-72 455*405*150 72
KWMSB-D /A-24A 350*350*80 24
KWMSB-D /C-FC12 350*300*80 12
KWMSB-D /C-SC12350*300*80
KWMSB-D /D-FC24350*300*80 24
KWMSB-D /D-SC24350*300*80
FSP-72A 550*480*120 72
FSP-32B 360*345*100 32
FSP-16C 400*385*110 16
FSP-16B 320*270*100 16
FSP-16A 360*345*100 16
