OLT for Gigabit Passive Optical Network (GPON)

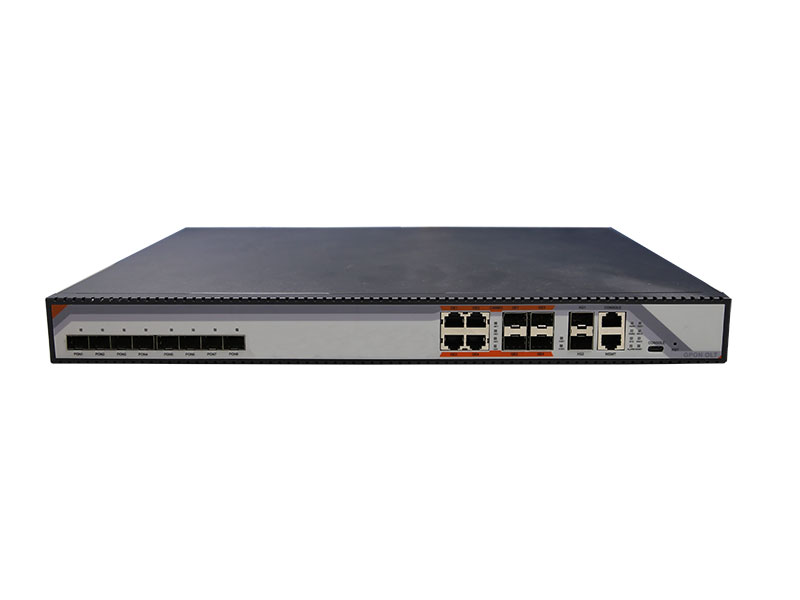

KOC-GT8008 Optical Line Terminal
The optical line terminals are completely in line with the relevant standards of ITU G.984.x and FSAN. They use 1U racks, and are equipped with one USB port, four upstream optical ports, four upstream electrical ports, two upstream Gigabit upstream ports, 8 GPON ports with a split ratio of 1:128.
The optical line terminals are compact and flexible, they are cost-effective choices for CPN fiber access, video monitor networks, as well as Enterprise LAN and IoT.
- In line with ITU-T G.984/G.988
- Remote ONT/ONU management by OMCI, compatible with ITU-T G.984.4/G.988 OMCI protocol
- 1U high 8PON pizza box compact design
- 2 layer switch
- Strong layer 2 line speed switching, complete layer 2 protocol, port aggregation and isolation, VLAN. Port speed limit, queue technology, flow control technology and ACL
- Guarantee for multi-task integration
- QOS guarantee
- Complete DBA, excellent QoS service, provide different QoS for GPON, meet different QoS requirement for delay, jitter and packet loss rate
- Easy-to-use management system
- Support CLI, WEB. SNMP. TELNET and SSH, meet the OMCI standard, business management through OMCI channel including ONT functional parameters, T-CONT business type, QoS parameters, request configuration information and performance statistics, automatic notification of system running events, ONT configuration by OLT, fault diagnosis, performance and security management.
| Rack | Type | 19 inch box | |
| Slot | 2×DC slot | ||
| Uplink | COMBO | 4×10/100/1000M adaptive electrical port | |
| 4×SFP port | |||
| Gigabit | 2×SFP+ port | ||
| PON | Number | 8 | |
| Port | SFP slot | ||
| Port type | ITU-TG.984.2 Class B+/Class C+ | ||
| Maximum split ratio | 1:128 | ||
| Admin port | 1×100/1000BASE-Tx out-of-band port 1×CONSOLE local management port | ||
| USB port | 1×Type-C Similar to CONSOLE, for serial login | ||
| PON optical interface | Maximum reach | 20KM | |
| Bit Rate | Downstream 2.5Gbps, Upstream 1.25Gbps | ||
| Wavelength | Downstream 1310n, Upstream 1490nm | ||
| Port Type | SC/UPC | ||
| Fiber Type | 9/125μm single mode fiber | ||
| TX Power Range | Class B+ +1.5～+5dBm | Class C+ +3～+7dBm | |
| RX Sensitivity | Class B+ -28dBm | Class C+ -30dBm | |
| Saturated RX Power | Class B+ -8dBm | Class C+ -12dBm | |
| Network management | Support CLI, SNMP, TELNET, SSH, WEB | ||
| Capability | Statue monitoring, configuration management, system log, system upgrade, user management; L2 layer configuration: port management, VLAN, RSTP, IGMP, ACL, QOS PON configuration: ONT certification, DBA pattern, business pattern, line pattern L3 layer configuration：static routing, dhcp-client, dhcp-relay and vlanif configuration | ||
| Gdps | 78G | ||
| Size | 440mm(L)*391mm(W)*44mm(H) | ||
| Weight | 4kg | ||
| Input Voltage | 220VAC | AC: 90V～240V, 47/63Hz | |
| -48DC | DC:-36V～-72V | ||
| Max Power Consumption | 70W | ||
| Environment | Operating Tem. | 0～50℃ | |
| Storage Tem. | -40～85℃ | ||
| Humidity | 5～90%（non-condensing） | ||

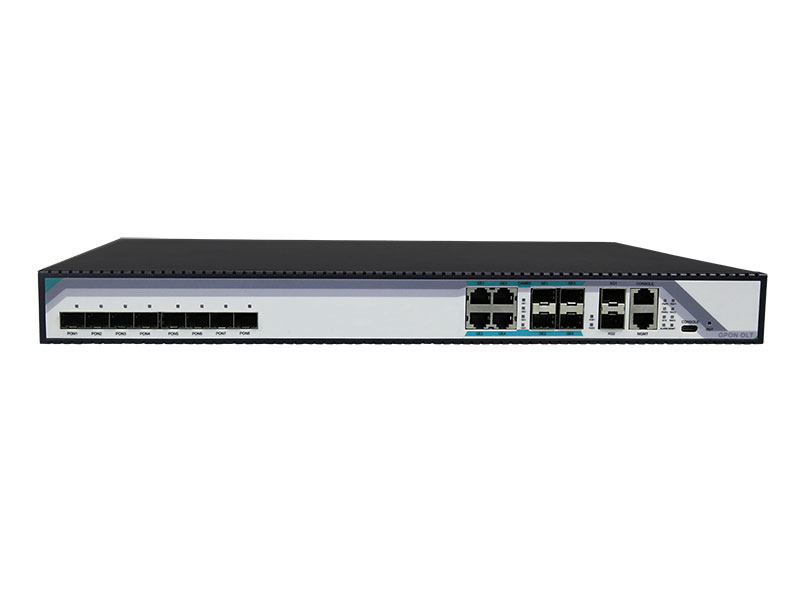

KOC-GT8016 Optical Line Terminal
Configuring a fiber network just became as easy as setting up a smartphone, and this series optical line terminal is the fiber solution that anyone can deploy. The devices offer Internet and telecom service providers a cost-effective optic delivery system for triple play services (data, voice, IPTV/VoD) with speeds of up to 2.5Gbps downstream and 1.25Gbps upstream.
The network is intelligently managed. They offer eight EPON ports and support up to 2048 concurrent clients with physical links of up to 20km in distance. They can meet the requirements of enhancing internet function and stability while lowering energy consumption.
| Rack | Type | 19 inch box | |
| Slot | 2×DC slot | ||
| Uplink | COMBO | 4×10/100/1000M adaptive electrical port | |
| 4×SFP port | |||
| Gigabit | 2×SFP+ port | ||
| PON | Number | 16 | |
| Port | SFP slot | ||
| Port type | ITU-TG.984.2 Class B+/Class C+ | ||
| Maximum split ratio | 1:128 | ||
| Admin port | 1×100/1000BASE-Tx out-of-band port 1×CONSOLE local management port | ||
| USB port | 1×Type-C Similar to CONSOLE, for serial login | ||
| PON optical interface | Maximum reach | 20KM | |
| Bit Rate | Downstream 2.5Gbps, Upstream 1.25Gbps | ||
| Wavelength | Downstream 1310n, Upstream 1490nm | ||
| Port Type | SC/UPC | ||
| Fiber Type | 9/125μm single mode fiber | ||
| TX Power Range | Class B+ +1.5～+5dBm | Class C+ +3～+7dBm | |
| RX Sensitivity | Class B+ -28dBm | Class C+ -30dBm | |
| Saturated RX Power | Class B+ -8dBm | Class C+ -12dBm | |
| Network management | Support CLI, SNMP, TELNET, SSH, WEB | ||
| Capability | Statue monitoring, configuration management, system log, system upgrade, user management; L2 layer configuration：port management, VLAN, RSTP, IGMP, ACL, QOS PON configuration：ONT certification, DBA pattern, business pattern, line pattern L3 layer configuration：static routing, dhcp-client, dhcp-relay and vlanif configuration | ||
| Gdps | 108G | ||
| Size | 440mm(L)*391mm(W)*44mm(H) | ||
| Weight | 4kg | ||
| Input Voltage | 220VAC | AC: 90V～240V, 47/63Hz | |
| -48DC | DC:-36V～-72V | ||
| Max Power Consumption | 70W | ||
| Environment | Operating Tem. | 0～50℃ | |
| Storage Tem. | -40～85℃ | ||
| Humidity | 5～90%（non-condensing） | ||
