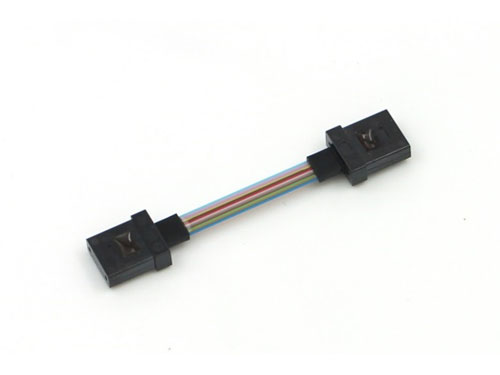

MT-MT Fiber Array Unit

MT-MT fiber array units are devices essential to a parallel optical module (QSFP + SR4). The MT, Corning G657A2 ensures a low loss rate with a total length tolerance of ±0.15mm and core pitch tolerance of ±0.05mm. These fiber array units are widely used in interconnection of small space optical modules.

Features

Transmitting rate: 40Gbps/100Gbps
In line with GR-1435
Simple structure, easy locating
Low cost
Customization available

Applications

QSFP
SFP+ active optical cable
parallel optical module
supercomputer
telecommunication
military application

Specifications

Connector A	MT Ferrule with guide pin
Connector B	MT Ferrule
Fiber shape	Ribbon/single fibers
Fiber count	8F/12F/16F.24F
Fiber type	OM3, OM4, OM1, OM2, OS1, OS2,PM,OMS
Length	20-100mm, customized length available
Length tolerance	+500μm/-0μm
