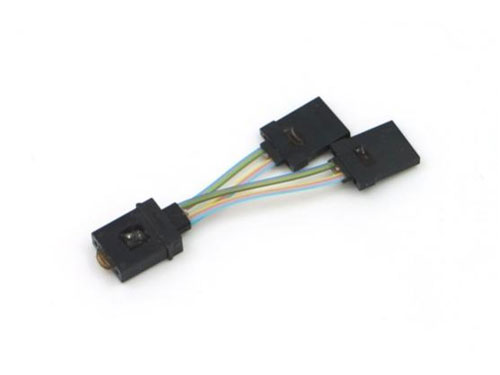

MT - 2*MT Assembly
Passive optical interconnect jumpers are applicable for use in QSFP, QSFP28, QSFP-DD, Micro QSFP, CXP, CFP, CDFP, and any parallel optical transceiver modules. They are designed to support a variety of network types, including Ethernet optical networks, InfiniBand optical networks and Fiber Channel networks.
Features- GR-1435, GR-1221 compliant
- Transmission mode: multi-channel, both serial and parallel
- High accuracy
- Support: 12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G, 8X10G, 8X25G, 8X50G, 8X100G
- Coupling Mode: Passive coupling with guide pins and 0, 8 degrees
- IL/RL Specifications: MT IL ≤0.60 dB typical 0.20 dB MT RL ≥20 dB
- Working temperature: -40℃~＋85℃
| Connector A | MT Ferrule with guide pin |
| Connector B | 2*MT Ferrule |
| Fiber shape | Ribbon/single fibers |
| Fiber count | 8F/12F/16F/24F |
| Fiber type | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
| Length | 20~100mm, customized length available |
| Length tolerance | +500um/-0um |
