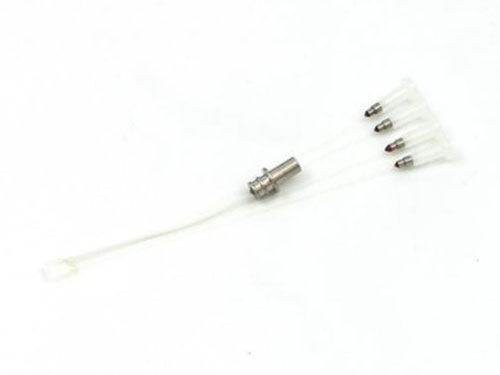

Fiber Array - SUS Assembly
Features
Specifications- In line with GR-1435, GR-1221 standards
- Transmission mode: multi-channel, both serial and parallel
- Highly accurate
- Support：12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G, 8X10G, 8X25G, 8X50G, 8X100G
- Coupling Mode:
Passive coupling with guide pins and 0, 8 degrees
Active coupling with light source and 0~ 45 degrees
Passive coupling with guide pins and 90 degrees - IL/RL specifications: MT IL ≤0.60 dB typical 0.20 dB MT RL ≥20 dB
- Environment requirement: -40℃~＋85℃
| Connector A | FA, customized size/angle available |
| Connector B | SUS |
| Fiber shape | Ribbon |
| Fiber count | 12 |
| Fiber type | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
| Length | 20~100mm, customized length available |
| Length tolerance | +500um/-0um |
