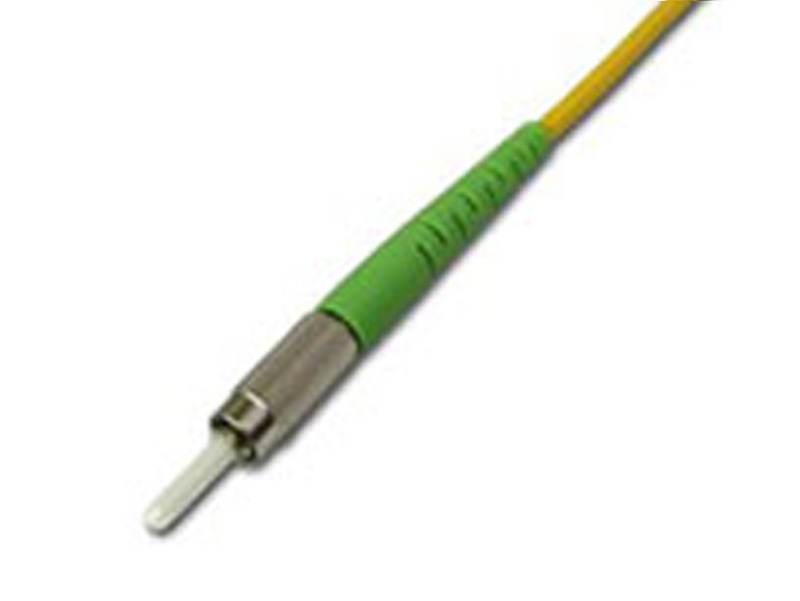

Fiber Patch Cord with DIN Connector, DIN 47256, Single Mode and Multimode

Fiber Optic Tools
Application
  • CATV
  • Telecommunication networks
  • Active device termination
  • Metro
  • Metro
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Premise installations
  • Wide Area Networks (WANs)
Specifications
Item Single mode Multimode
Insertion Loss Typical ≤0.2dB, Maximum≤0.3dB ≤0.25dB
Return Loss ≥50 dB (PC) ≥60 dB (APC) /
Repeatability ≤0.1 ≤0.1
Durability ≤0.2 dB typical change, 500 matings ≤0.2 dB typical change, 500 matings
Interchangeability ≤0.2dB ≤0.2dB
Tensile strength >70N >70N
Operating Temperature -40 to + 85°C 40 to + 85°C
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
