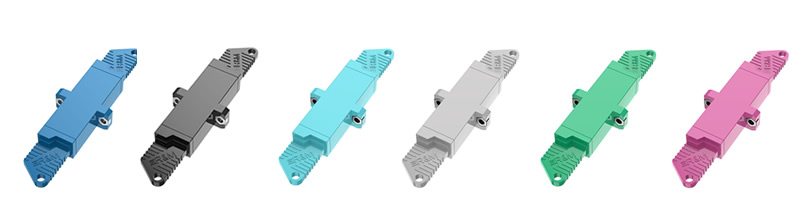

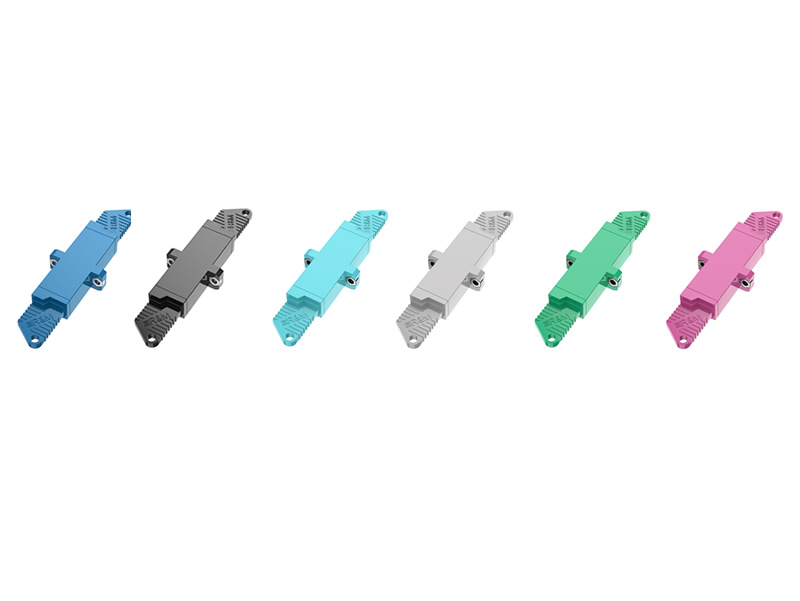

E2000 Fiber Adapter

The E2000 adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-Loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.

E2000 Fiber Adapter
Applications
  • Fiber optic transmission system
  • CATV networks
  • LAN
  • Testing/Measurement Instruments
  • Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinet
Features
  • Excellent handling at high packing density
  • Simple, duplex and 8-way types available
  • Bulkhead adaptor* Self-retentive mechanism enables
  • Low the ferrules compression forces off the back panel
Technical Parameters
Polish Type Unit PC APC
Nominal fiber O/D um 125±2
Insertion Loss dB ≤0.2 ≤0.2
Return Loss dB ≥50 ≥65
Mating Durability (500Cycles) dB ≤0.2
Temperature Stability dB ≤0.3
Operating Temperature °C -40~+85
Storage Temperature °C -40~+85
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
