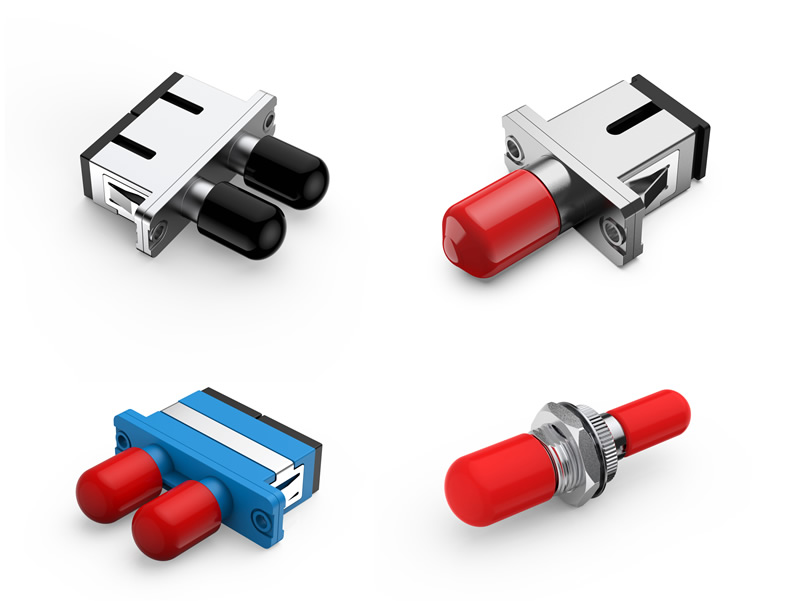

Hybrid Adapter

Hybrid Adapter
Specification
  • Insertion Loss: <0.20dB, 2.5mm sleeve/ 1.25mm sleeve;
    ≤0 .5dB, 1.25mm/2.5mm sleeve
  • Durability: <0.20 dB typical change, 1000 matings
  • Operating Temperature: -40 to + 85°C
Applications
  • CATV
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
Features
  • Low insertion loss and back reflection loss
  • High precision alignment
  • Choice of housing shape and sleeve material
  • Compact design
  • Nickel plated brass body
LC-FC SMSX Metal adapter
  • Hybrid Adapter
  • Hybrid Adapter

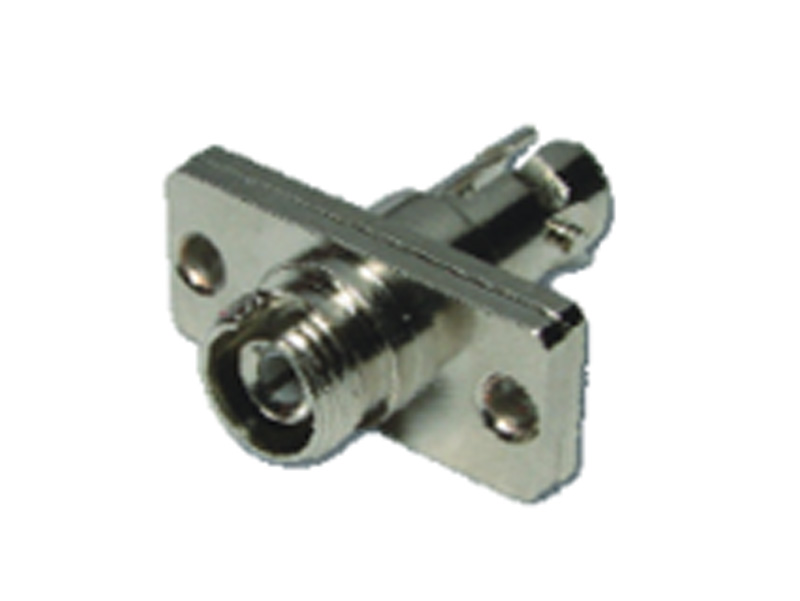

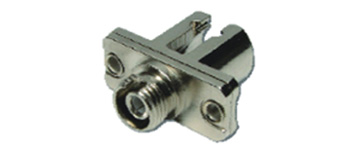

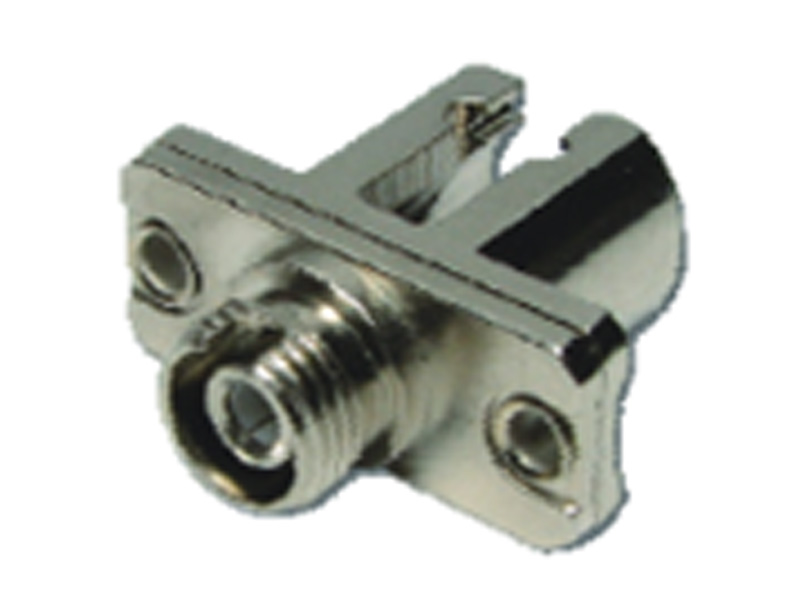

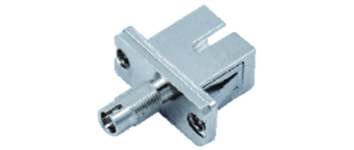

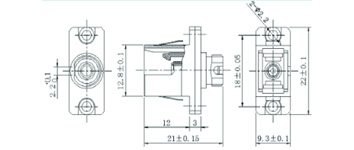

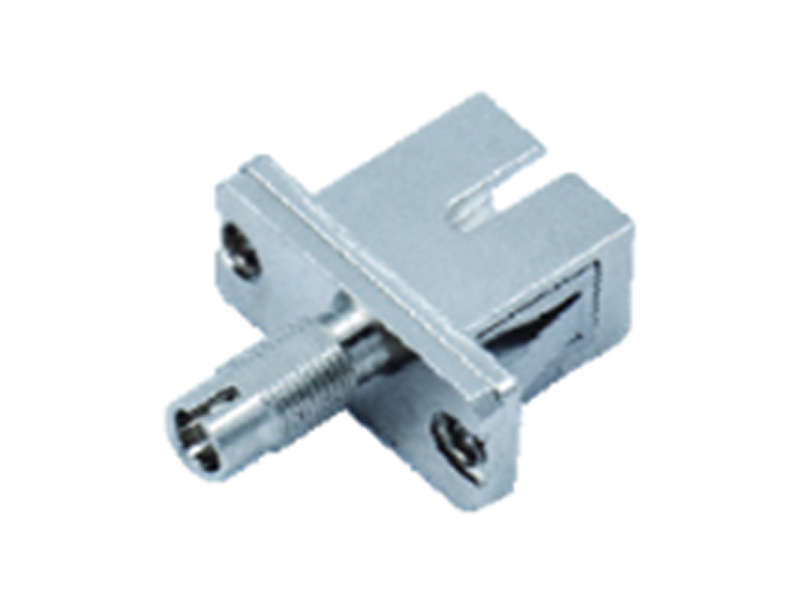

SC-FC Adapter
  • Hybrid Adapter
  • Hybrid Adapter
PN Description
121-0201-101 LC-FC SMSX Metal adapter
121-0302-101 FC-SC SMDX Metal adapter
121-0307-102 FC-SC MMSX Metal adapter
121-0801-101 FC-SC APC Type SMSX Metal adapter
LC-ST Adapter
  • Hybrid Adapter
  • Hybrid Adapter
PN Description
121-2101-102 LC-ST SMSX Metal adapter
121-2101-107 LC-ST MMSX Metal adapter

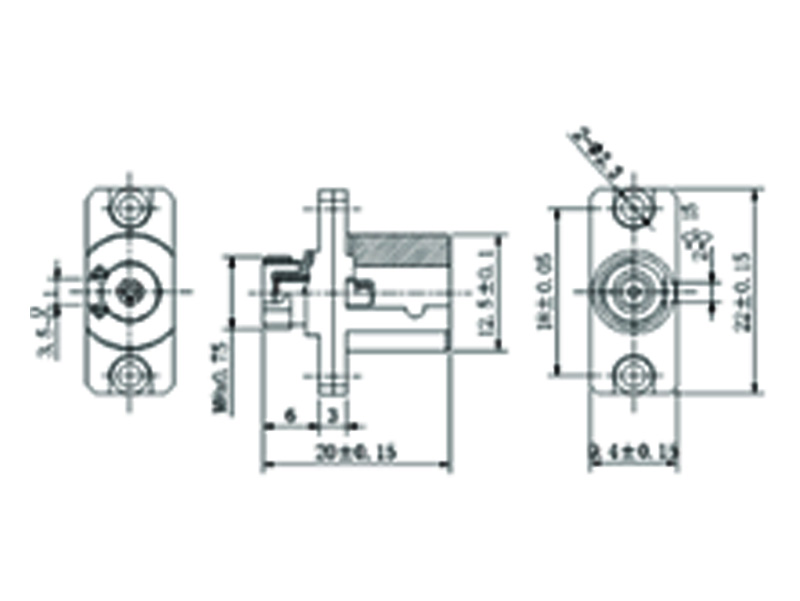

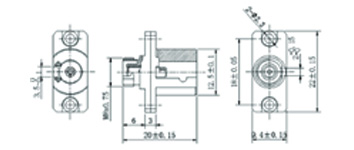

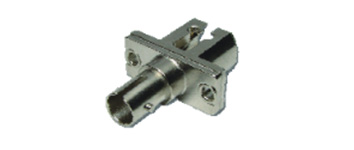

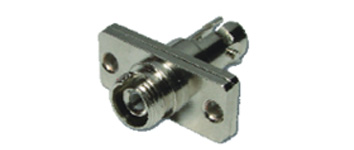

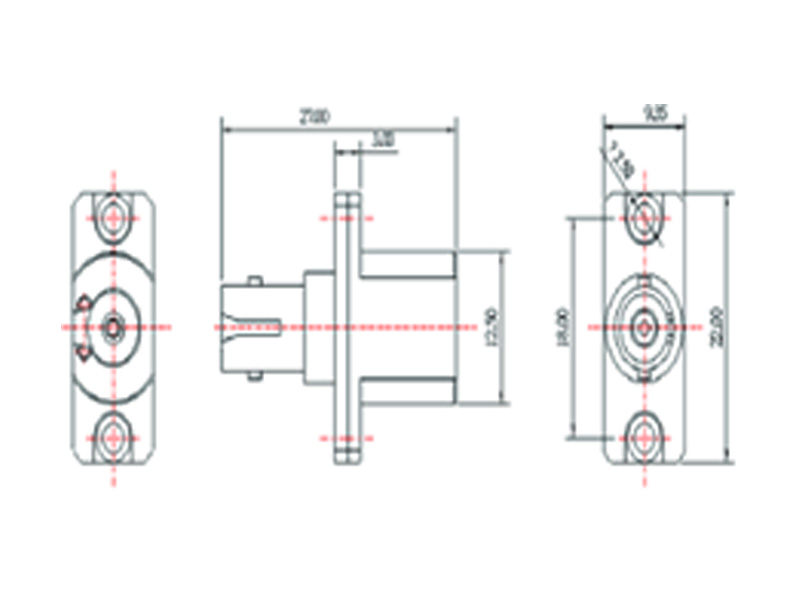

FC-ST Adapter
  • Hybrid Adapter
  • Hybrid Adapter
PN Description
121-0401-103 FC-ST SMSX Metal adapter
121-0402-101 FC-ST SMDX Metal adapter
121-0407-102 FC-ST MMSX Metal adapter
SC-LC Adapter
  • Hybrid Adapter
  • Hybrid Adapter
PN Description
121-1101-101 SC-LC SMSX Metal adapter
121-1107-101 SC-LC MMSX Metal adapter
121-1108-101 SC-LC MMDX Metal adapter

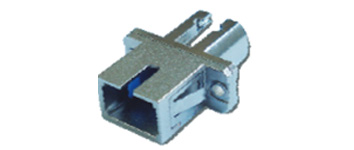

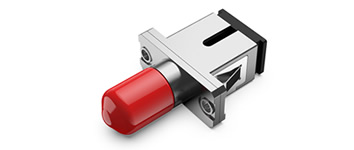

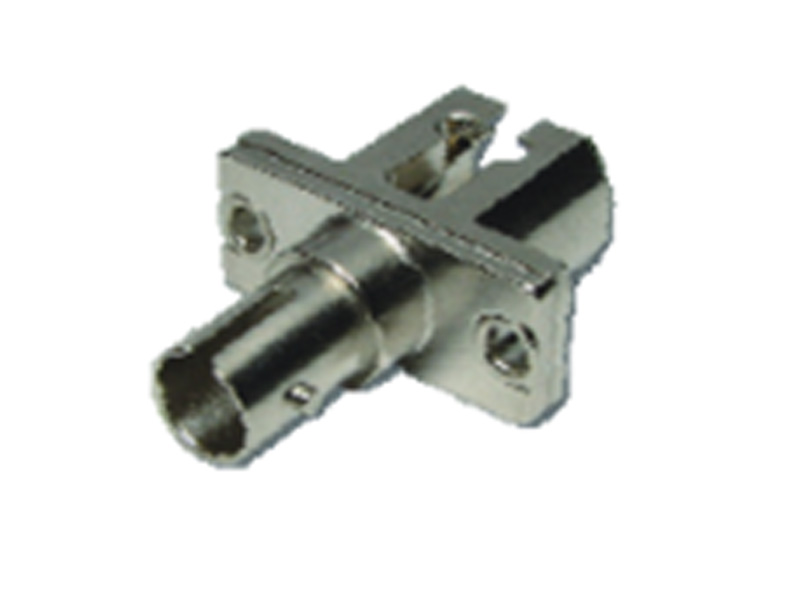

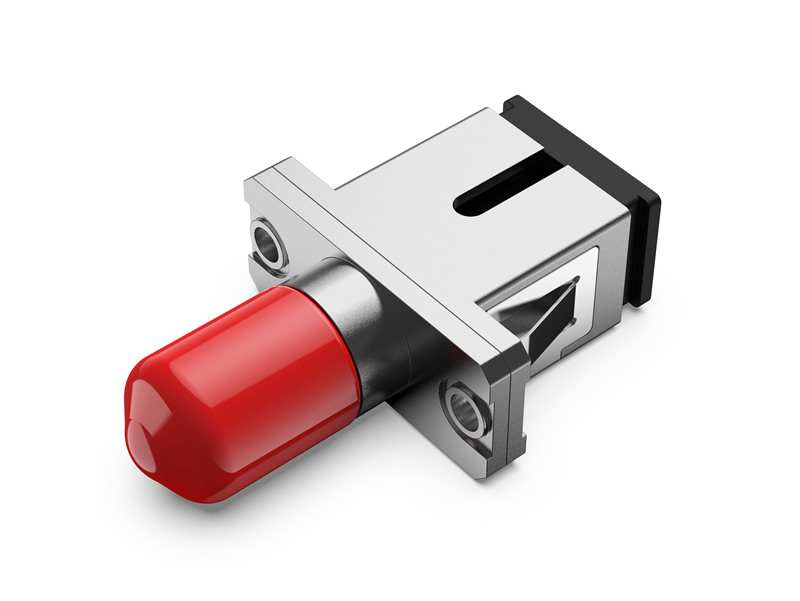

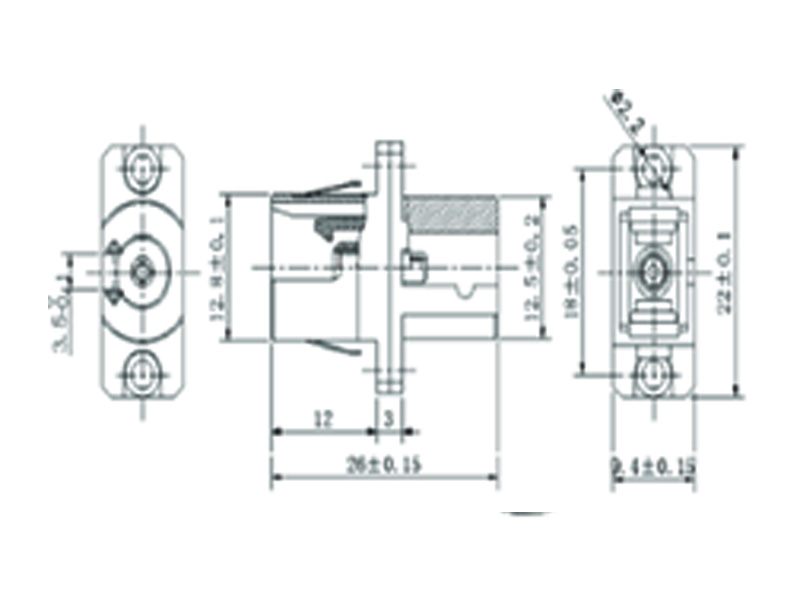

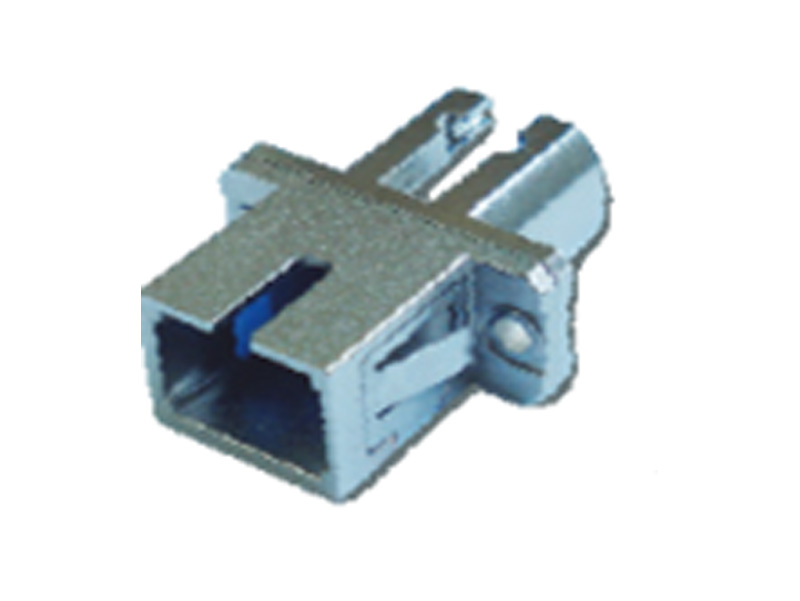

SC-ST SX Adapter
  • Hybrid Adapter
  • Hybrid Adapter
PN Description
121-1401-101 SC-ST SMSX Metal adapter
121-1407-102 SC-ST MMSX Metal adapter

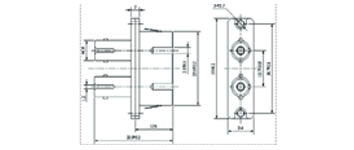

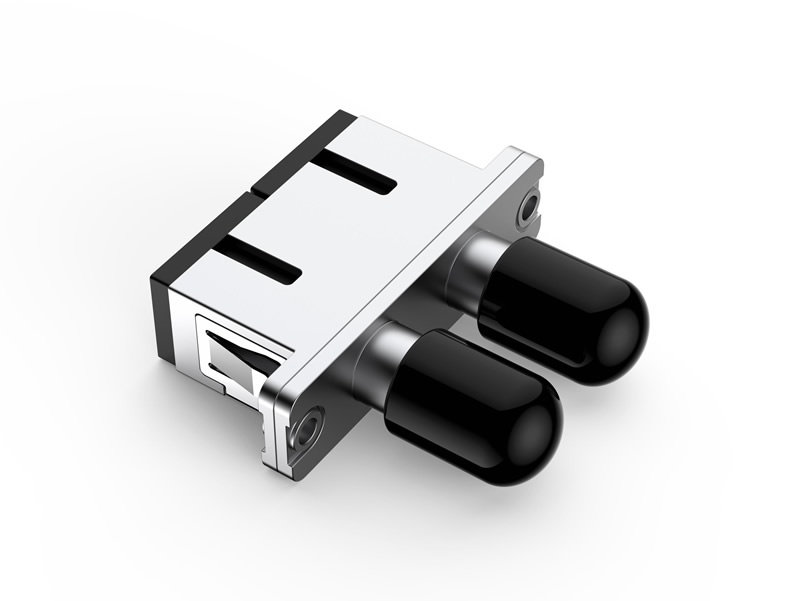

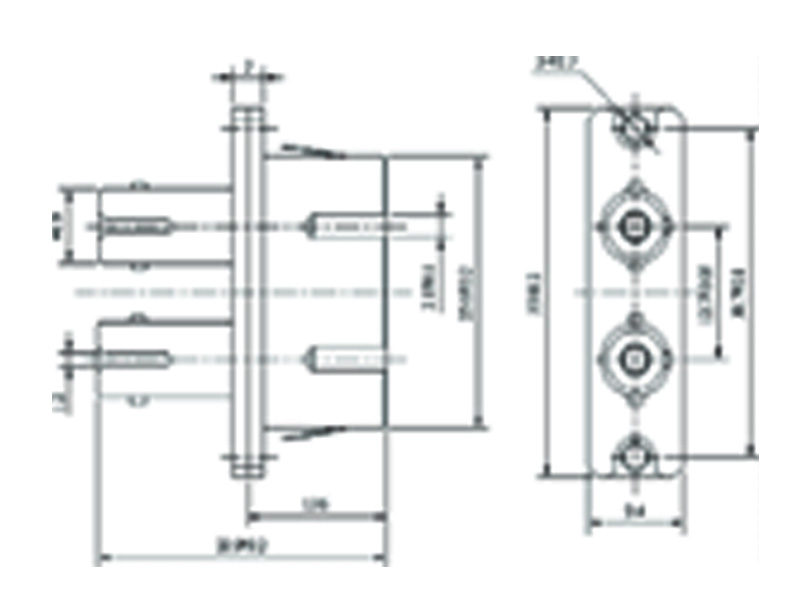

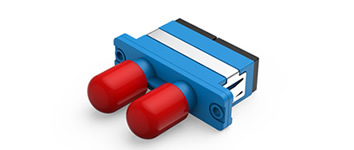

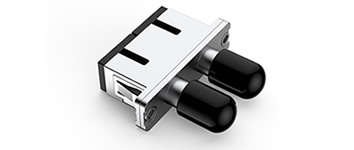

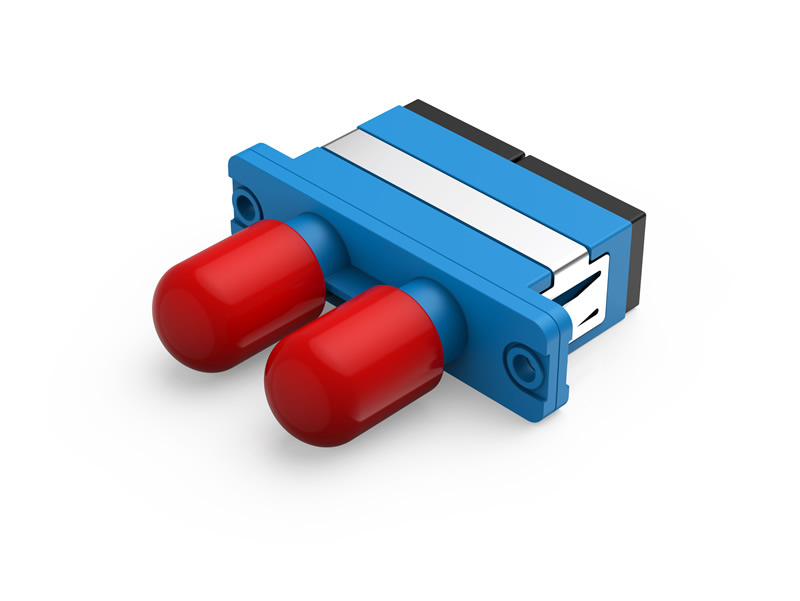

SC-ST DX Adapter
  • Hybrid Adapter
  • Hybrid Adapter
PN Description
121-1402-301 SC-ST SMDX Plastic adapter, Blue
121-1408-602 SC-ST MMDX Plastic adapter, Beige
SC-DIN Adapter
  • Hybrid Adapter
  • Hybrid Adapter
PN Description
121-1701-101 SC-DIN SMSX Metal adapter
