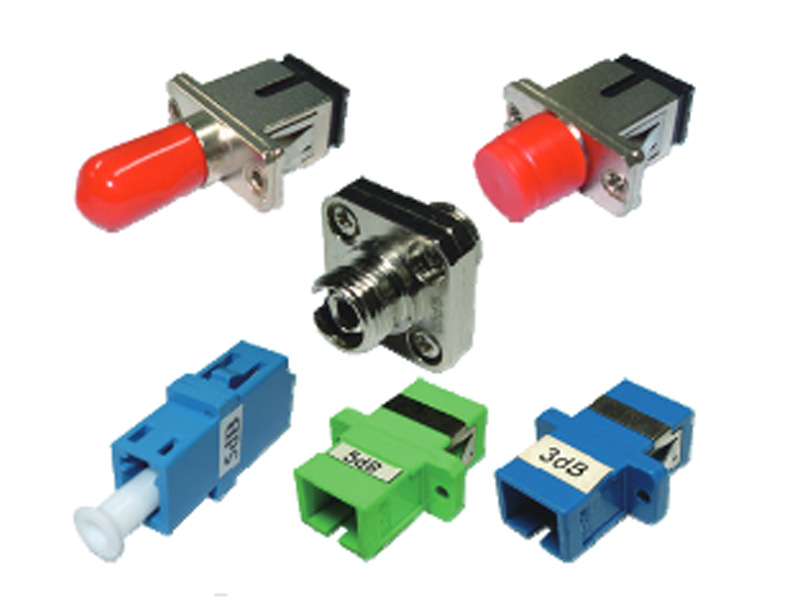

Fixed Fiber Optical Attenuator, Adapter Type

Fixed Fiber Optical Attenuator, Adapter Type
Specification
  • Attenuation Range: 0-20dB
  • Available Wavelength: 1310nm or 1550nm
  • Fixed attenuation value: 1/2/3/5/10/15/20dB or optional
  • Return Loss: ≥50 dB (PC); ≥60 dB (APC)
  • Attenuation Accuracy: +/-0.5 (1-5) dB; +/-10% (6-20) dB
  • Polarization Dependent Loss: ≤0.2dB; -40°C- 80°C
  • Humidity Range: +/- 0.2 dB Change in 10% to 90% relative Humidity Range.
  • Vibration: ≤0.1 dB change between 10Hz to 55Hz.
  • Drop: +/- 0.2dB after r 8 drops (3 axe s) from 1.8 meters onto a hard surface.
Applications
  • Low Insertion Loss Deviation
  • Fiber Optic Communication Systems
  • Fixed Type
  • Local Area Networks (LAN)
  • Variable of attenuation ways and a bound of connector types
Features
  • Good interchangeability and repeatability
  • High precision
  • High reliability
  • Optional diversity
  • Conform to the IEC standard and ROHS requirements

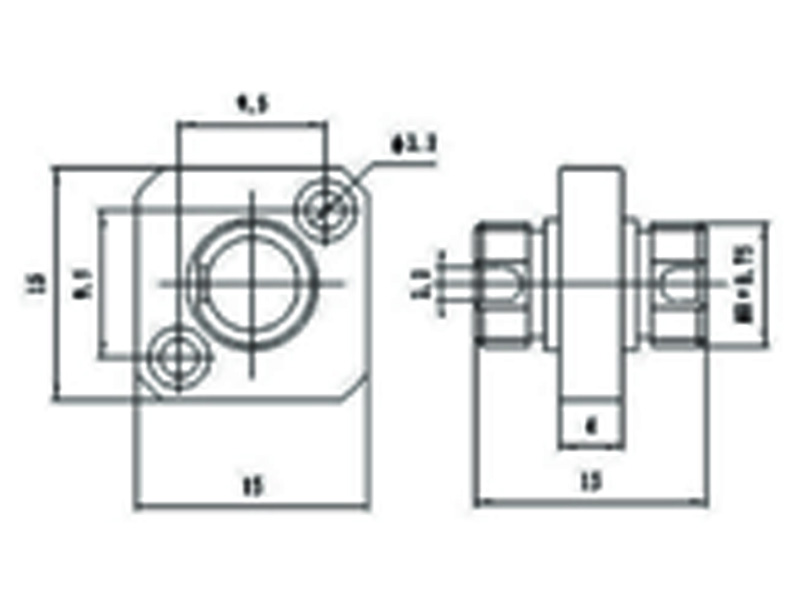

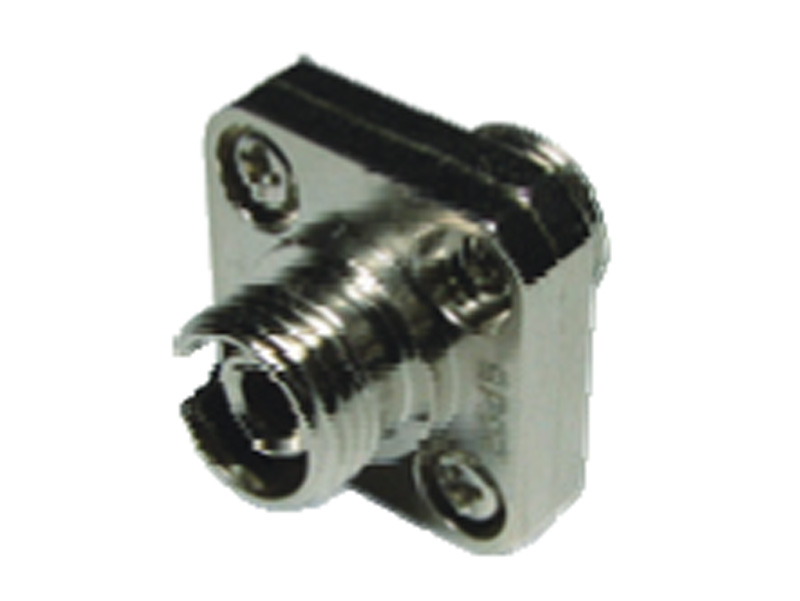

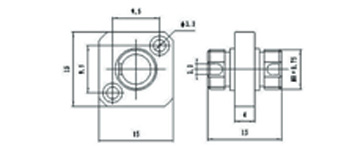

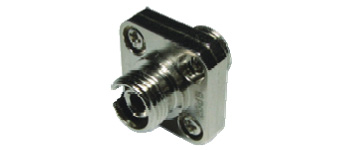

FC Optical Attenuator
  • FC Optical Attenuator
  • FC Optical Attenuator
PN Attenuation value PN Attenuation value
131-0101-301 1dB 131-0101-301 11dB
131-0102-301 2dB 131-0101-301 12dB
131-0103-301 3dB 131-0101-301 13dB
131-0104-301 4dB 131-0101-301 14dB
131-0105-301 5dB 131-0101-302 15dB
131-0106-301 6dB 131-0101-301 16dB
131-0107-301 7dB 131-0101-301 17dB
131-0108-301 8dB 131-0101-301 18dB
131-0109-301 9dB 131-0101-301 19dB
131-0110-301 10dB 131-0101-301 20dB

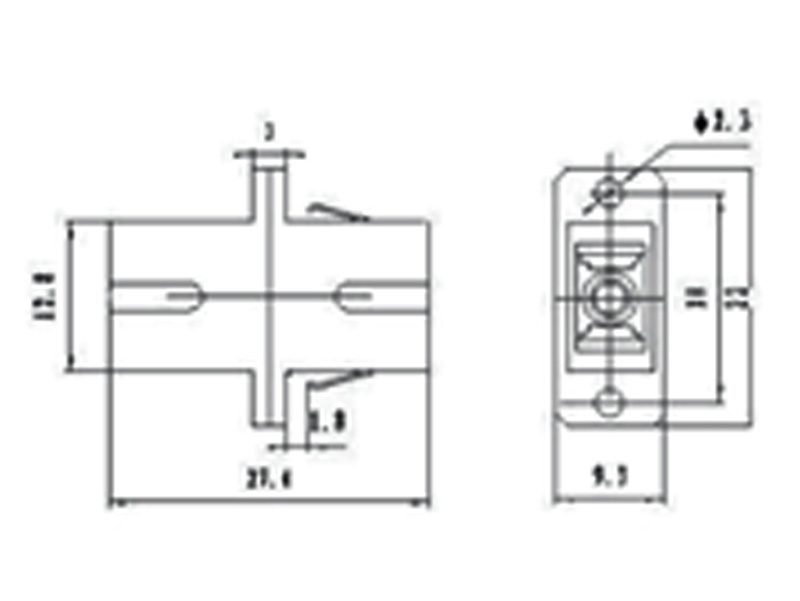

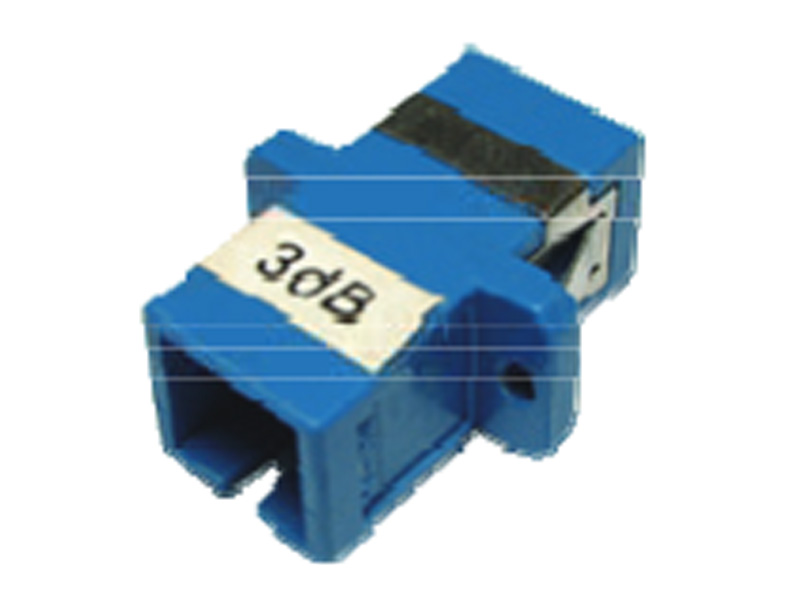

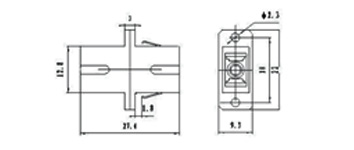

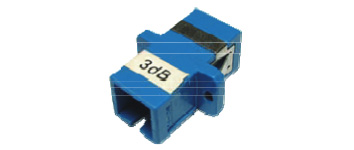

SC Fiber Optical Attenuator
  • SC Fiber Optical Attenuator
  • SC Fiber Optical Attenuator
PN Attenuation value PN Attenuation value
131-0201-301 1dB 131-0211-301 11dB
131-0202-301 2dB 131-0212-301 12dB
131-0203-301 3dB 131-0213-301 13dB
131-0204-301 4dB 131-0214-301 14dB
131-0205-302 5dB 131-0215-302 15dB
131-0206-301 6dB 131-0216-301 16dB
131-0207-301 7dB 131-0217-301 17dB
131-0208-301 8dB 131-0218-301 18dB
131-0209-301 9dB 131-0219-301 19dB
131-0210-301 10dB 131-0220-301 20dB

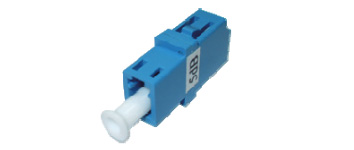

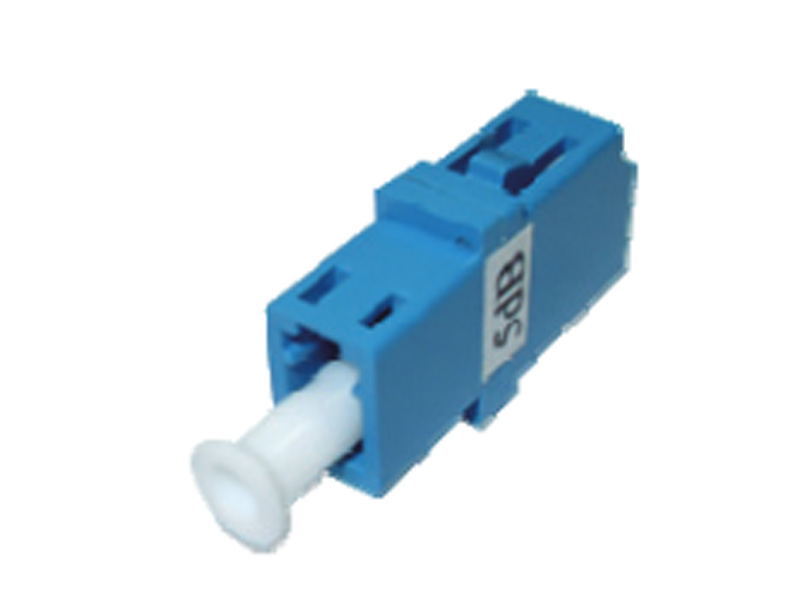

LC Optical Attenuator
  • LC Optical Attenuator
PN Attenuation value PN Attenuation value
131-0301-301 1dB 131-0311-301 11dB
131-0302-301 2dB 131-0312-301 12dB
131-0303-301 3dB 131-0313-301 13dB
131-0304-301 4dB 131-0314-301 14dB
131-0305-302 5dB 131-0315-302 15dB
131-0306-301 6dB 131-0316-301 16dB
131-0307-301 7dB 131-0317-301 17dB
131-0308-301 8dB 131-0318-301 18dB
131-0309-301 9dB 131-0319-301 19dB
131-0310-301 10dB 131-0320-301 20dB

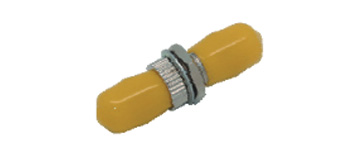

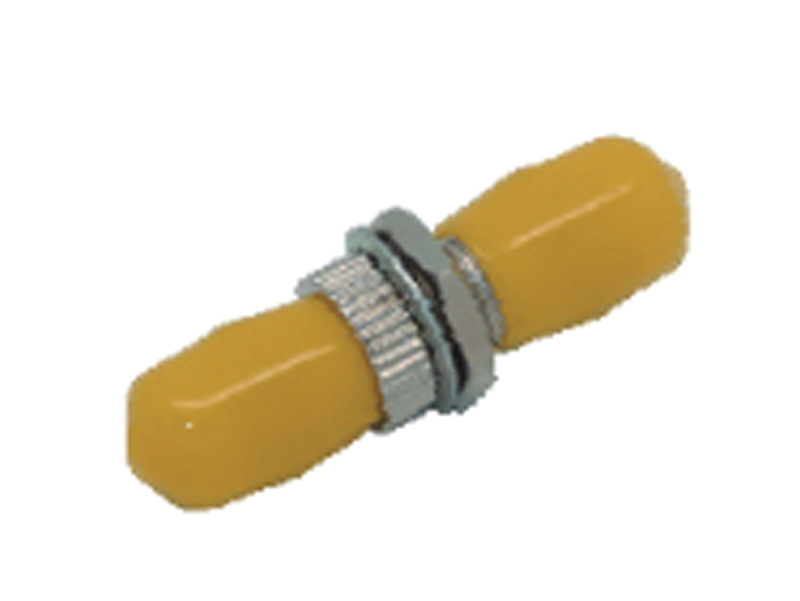

ST Optical Attenuator
  • ST Optical Attenuator
PN Attenuation value PN Attenuation value
131-0403-301 3dB 131-0407-301 7dB
131-0405-301 5dB 131-0410-301 10dB

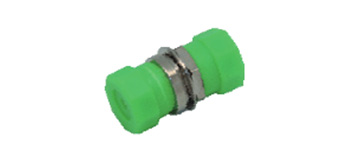

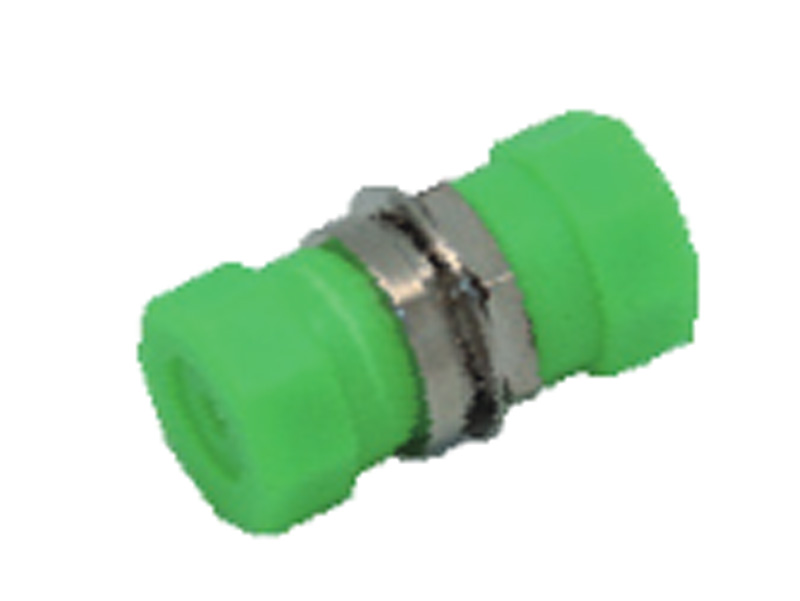

FC/APC Optical Attenuator
  • FC/APC Optical Attenuator
PN Attenuation value PN Attenuation value
131-0901-301 1dB 131-0911-301 11dB
131-0902-301 2dB 131-0912-301 12dB
131-0903-301 3dB 131-0913-301 13dB
131-0904-301 4dB 131-0914-301 14dB
131-0905-302 5dB 131-0915-301 15dB
131-0906-301 6dB 131-0916-301 16dB
131-0907-301 7dB 131-0917-301 17dB
131-0908-301 8dB 131-0918-301 18dB
131-0909-301 9dB 131-0919-301 19dB
131-0910-301 10dB 131-0920-301 20dB

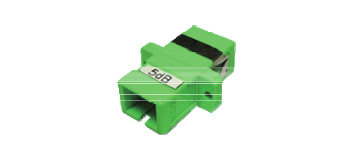

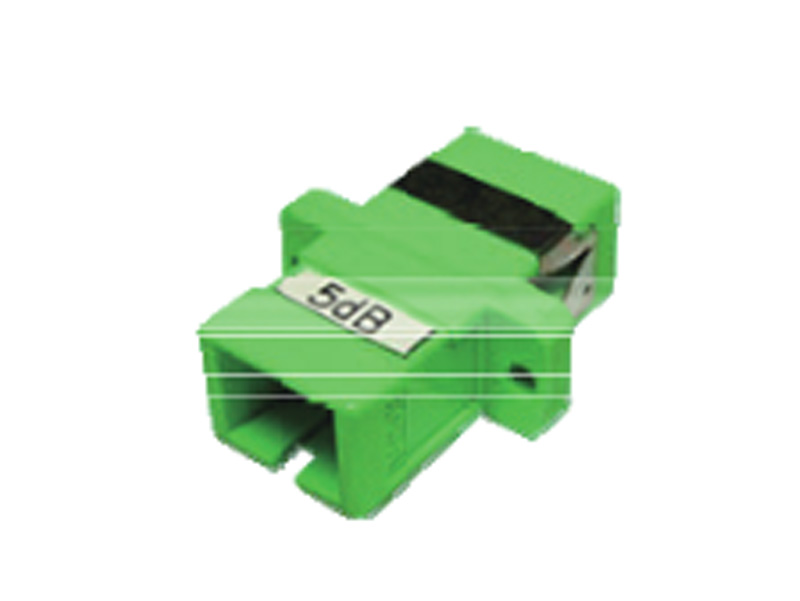

SC/APC Optical Attenuator
  • SC/APC Optical Attenuator
PN Attenuation value PN Attenuation value
131-1001-301 1dB 131-1011-301 11dB
131-1002-301 2dB 131-1012-301 12dB
131-1003-301 3dB 131-1013-301 13dB
131-1004-301 4dB 131-1014-301 14dB
131-1005-302 5dB 131-1015-3012 15dB
131-1006-301 6dB 131-1016-301 16dB
131-1007-301 7dB 131-1017-301 17dB
131-1008-301 8dB 131-1018-301 18dB
131-1009-301 9dB 131-1019-301 19dB
131-1010-301 10dB 131-1020-301 20dB

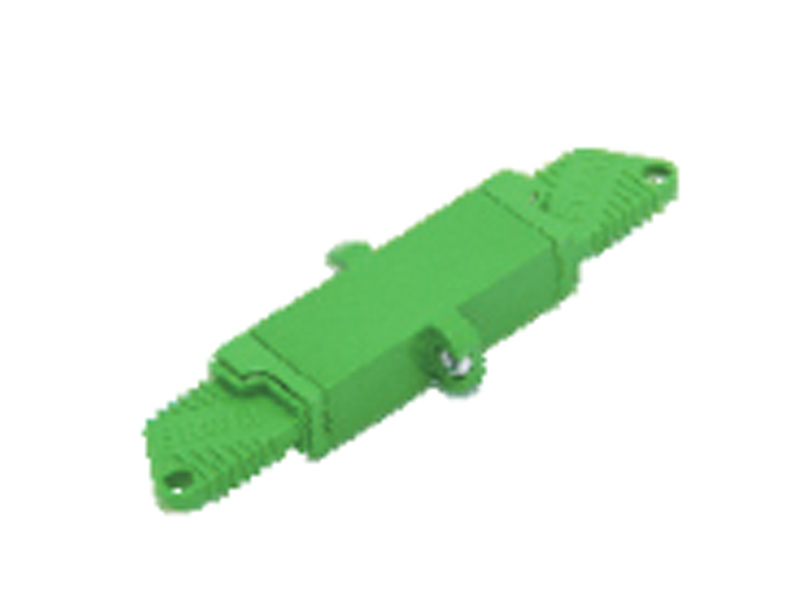

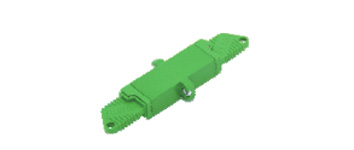

E2000/APC Optical Attenuator
  • E2000/APC Optical Attenuator
PN Attenuation value PN Attenuation value
131-1201-301 1dB 131-1211-301 11dB
131-1202-301 2dB 131-1212-301 12dB
131-1203-301 3dB 131-1213-301 13dB
131-1204-301 4dB 131-1214-301 14dB
131-1205-302 5dB 131-1215-302 15dB
131-1206-301 6dB 131-1216-301 16dB
131-1207-301 7dB 131-1217-301 17dB
131-1008-301 8dB 131-1018-301 18dB
131-1209-301 9dB 131-1219-301 19dB
131-1210-301 10dB 131-1220-301 20dB
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
