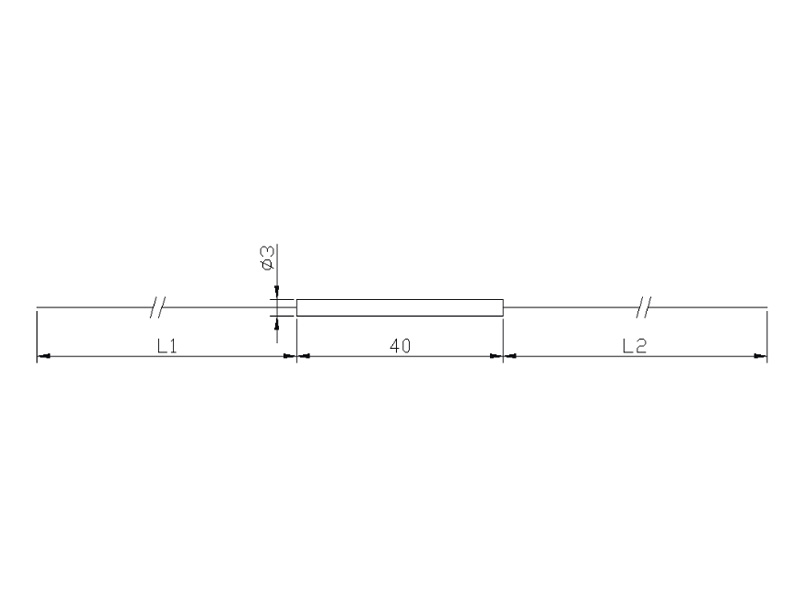

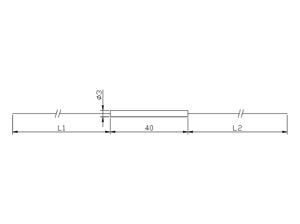

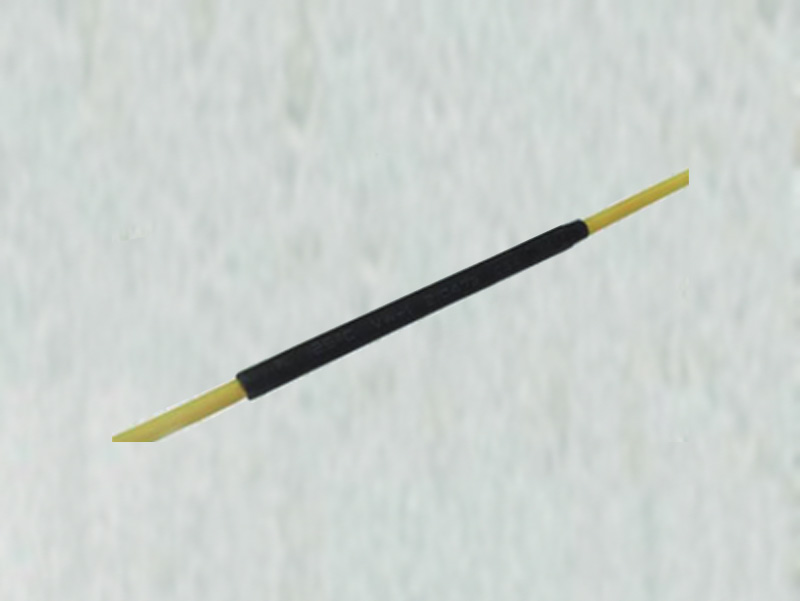

In-line Fixed Attenuator

In-line Fixed Attenuator
In-line Fixed Attenuator
Specification
  • Attenuation Range: 0-20dB
  • Attenuation Tolerance: ≤0.5dB (1dB-10dB); ≤1.0dB (1 1dB-20dB)
  • Available Wavelengths: 1310nm, 1550nm, 1310&1550nm
  • Wavelength Dependence: <0.3dB Change in insertion loss for 1310-1550 nm.
  • Return Loss: ≥55 dB (UPC); ≥65 dB (APC)
  • Polarization Dependent Loss: ≤0.2dB
  • Temperature Range: -40°C -80°C (≤0.2dB in insertion loss).
  • Humidity Range: +/- 0.2 dB Change in 10% to 90% relative Humidity Range.
  • Vibration: ≤0.1 dB change between 10Hz to 55Hz.
  • Drop: +/- 0.2dB after 8 drops (3 axes) from 1.8 meters onto a hard surface.
Applications
  • DWDM Equipment
  • Fiber optic communication systems
  • Video & CATV
  • Local Area Networks (LAN)
Features
  • Bell core Compliant
  • High precision
  • Good stability
  • Simple and Reliable Structure
Order Information
PN Description
132-0620-301 SC/PC-LC/PC SXSM In-line fixed Attenuator,2.0mm, G652D, LSZH,20dB,3M
132-1401-301 LC/PC-LC/PC SXSM In-line fixed Attenuator,2.0mm, G652D, LSZH,1dB,3M
132-1402-301 LC/PC-LC/PC SXSM In-line fixed Attenuator,2.0mm, G652D, LSZH,2dB,3M
132-1403-301 LC/PC-LC/PC SXSM In-line fixed Attenuator,2.0mm, G652D, LSZH,3dB,3M
132-1411-301 LC/PC-LC/PC SXSM In-line fixed Attenuator,2.0mm, G652D, LSZH,11dB,3M
132-1504-303 MU/PC-LC/PC (Black boot) SXSM In-line fixed Attenuator,2.0mm, G657A1, LSZH,4dB,1M
132-1504-304 MU/PC-LC/PC (Black boot) SXSM In-line fixed Attenuator,2.0mm, G657A1, LSZH,4dB,2M
132-1506-303 MU/PC-LC/PC (Black boot) SXSM In-line fixed Attenuator,2.0mm, G657A1, LSZH,6dB,1M
132-1506-304 MU/PC-LC/PC (Black boot) SXSM In-line fixed Attenuator,2.0mm, G657A1, LSZH,6dB,2M
132-1508-303 MU/PC-LC/PC (Black boot) SXSM In-line fixed Attenuator,2.0mm, G657A1, LSZH,8dB,1M
132-1508-304 MU/PC-LC/PC (Black boot) SXSM In-line fixed Attenuator,2.0mm, G657A1, LSZH,8dB,2M
132-1702-201 FC/APC-FC/APC SXSM In-line fixed Attenuator,0.9mm, G652D, PVC,1550nm,2dB,1M
132-1703-201 FC/APC-FC/APC SXSM In-line fixed Attenuator,0.9mm, G652D, PVC,1550nm,3dB,1M
132-1704-201 FC/APC-FC/APC SXSM In-line fixed Attenuator,0.9mm, G652D, PVC,1550nm,4dB,1M
132-1805-301 SC/APC-LC/APC SXSM In-line fixed Attenuator,2.0mm, G652D, LSZH,5dB,0.7M
132-2220-301 SC/PC-SC/PC SXSM In-line fixed Attenuator,2.0mm, G652D, LSZH,20dB,3M
132-2320-501 ST-ST SXMM In -line fixed Attenuator,0.9mm,62.5/125, LSZH,850nm,15dB,1M
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
