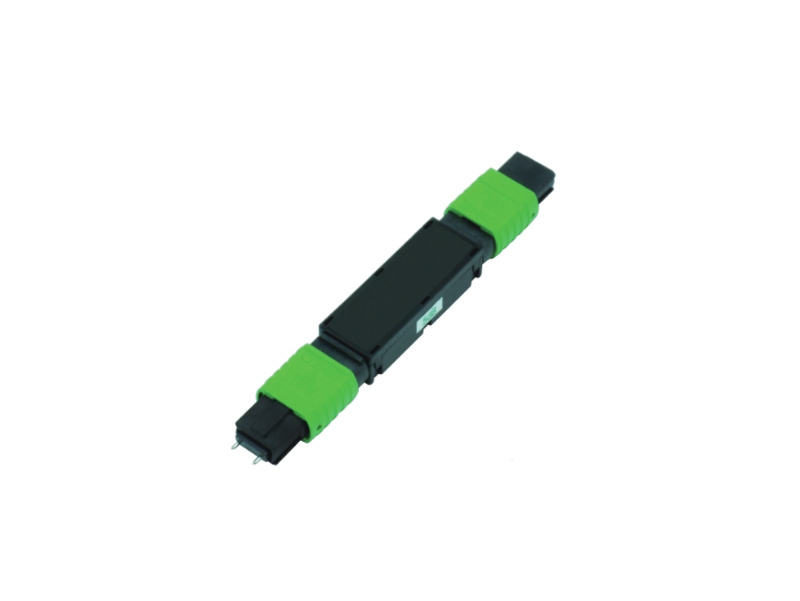

MPO Attenuator

MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS

MPO Attenuator
Specification
  • Operation Wavelength: 1310/1 550nm
  • Attenuation Tolerance:±1dB (at 2-10dB), ±1 0% (at 11-20dB)
  • Return Loss: 60dB (8°Polishing, SM)
  • Operating Temperature: -25°C-75°C
  • Attenuation: 1~20dB

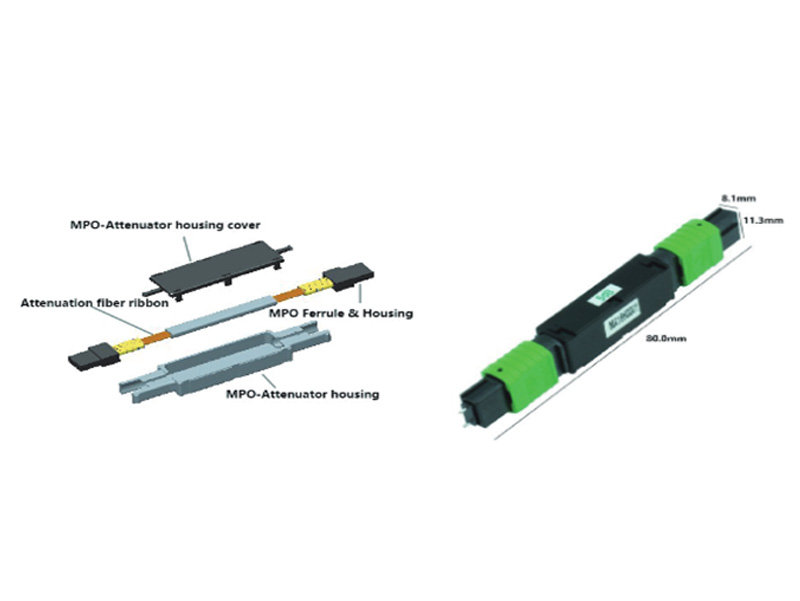

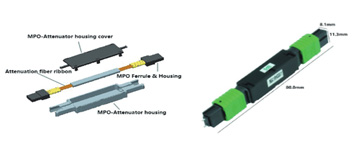

  • Housing Dimension: Height 8.1 mm/Length 80.0mm/Width 1 1.3 mm
Applications
  • High Stability and High Durability
  • Compact Housing Dimension
  • QSFP Available
Features
MPO Attenuator
  • Data Center Infrastructure
  • Storage Area Network and Fiber Channel
  • Various 40G and 100Gbps Protocols
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
