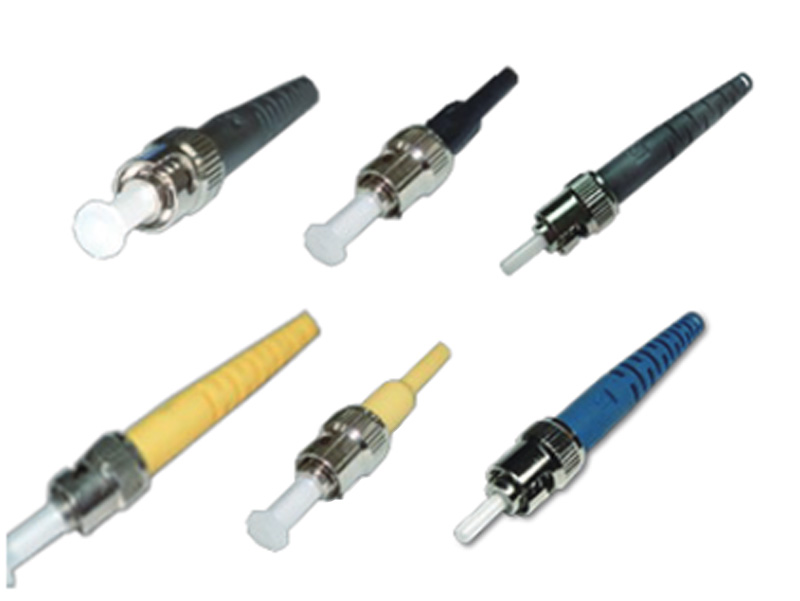

ST Connector

ST Connector
Applications
  • Instrumentation
  • Data processing networks
  • Premise installations
  • Local Area Networks (LANs)
Features
  • High precision alignment
  • Boots in a variety of colors
  • Ferrule end surface preformed
  • Nickel plated brass body
  • Free-floating ceramic ferrule
  • Bayonet style housing for easy termination
  • Low insertion loss and back reflection loss
Specification
Item Single mode Multimode
Insertion Loss ≤0. 30dB ≤0. 30dB
Ret urn Loss ≥50 dB (PC)
Durability <0. 20 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C -40 to + 85°C
Ferrule Hole Sizes 125.0+1/-0μm, Con centricity: ≤1. 0μm 125μm, Concentricity: ≤3μm
125.3+1/-0μm, Con centricity: ≤1. 0μm 127μm, Concentricity: ≤3μm
125.5+1/-0μm, Con centricity: ≤1. 0μm 128μm, Concentricity: ≤3μm
126.0+1/-0μm, Con centricity: ≤1. 0μm /
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
