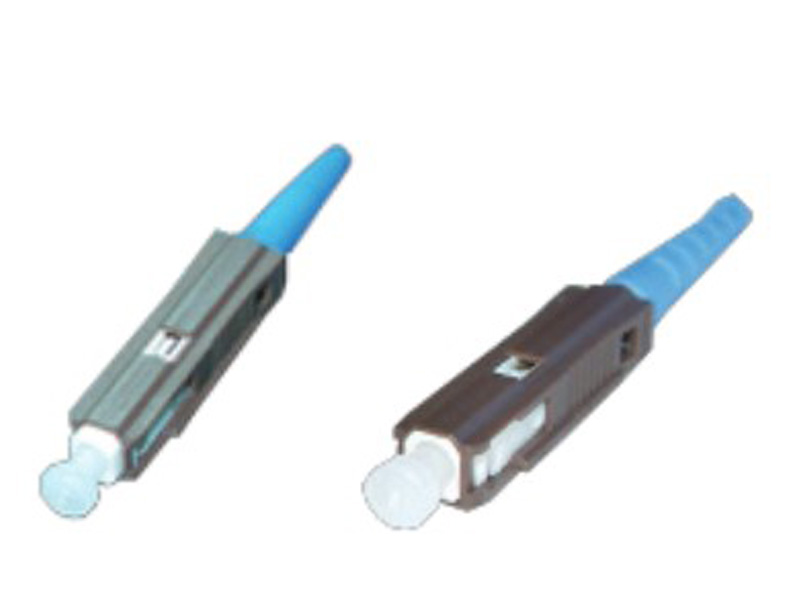

MU Connector

MU Connector
Applications
  • CATV
  • Video
  • Telecommunication networks
  • Data processing networks
  • Industrial and medical
  • Premise installations
  • Wide Area Networks (WANs)·Active device termination
  • Local Area Networks (LANs)
Features
  • NTT-MU hardware compatibility
  • NTT & JIS compliance
  • UL-rated plastic housing and boot
  • High precision alignment
  • Tunable zirconia connector ferrule
  • Compact, pull-proof design
  • Behind-the-Wall style short connector
  • Low insertion loss and back reflection loss
Specification
Item Single mode Multimode
Insertion Loss ≤0. 30dB ≤0. 30dB
Ret urn Loss ≥50 dB (PC) ≥60 dB (APC)
Durability <0.20 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C -40 to + 85°C
Ferrule Hole Sizes 125.0+1/-0μm, Con centricity: ≤1. 0μm 127μm, Concentricity: ≤3μm
125.5+1/-0μm, Con centricity: ≤1. 0μm
126.0+1/-0μm, Con centricity: ≤1. 0μm
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
