FC Connector

FC Connector
Applications
  • Gigabit Ethernet
  • Videos
  • Multimedia
  • Active device termination
  • Premise installations
  • Telecommunication networks
Features
  • RJ-45 style interface
  • Compact, pull-proof design
  • High precision alignment
  • Behind-the-Wall style short connector
  • UL-rated plastic housing and boot
  • Low insertion loss and back reflection loss
  • Polarized and color coded (TIA568-A & ISO 11801)
Specification
Item PC APC
Insertion Loss ≤0. 30dB ≤0. 30dB
Ret urn Loss ≥50 dB (PC)
≥60 dB (APC)		 /
Durability <0. 20 dB typical change, 1000 matings /
Operating Temperature -40 to + 85°C -40 to + 85°C
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1.0μm 127μm, Concentricity: ≤3.0μm
125.5+1/-0μm, Concentricity: ≤1.0μm /
126.0+1/-0μm, Concentricity: ≤1.0μm /

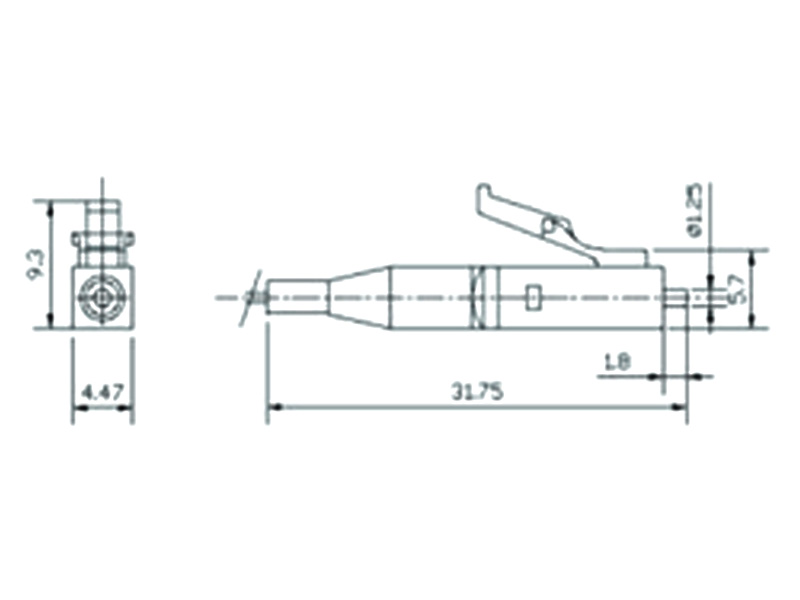

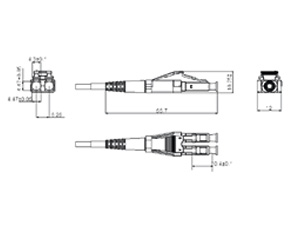

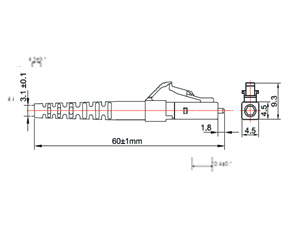

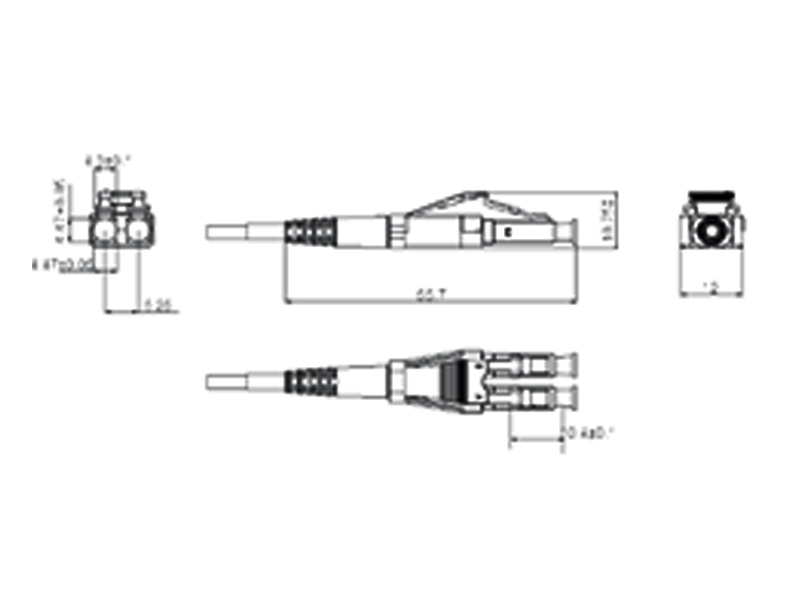

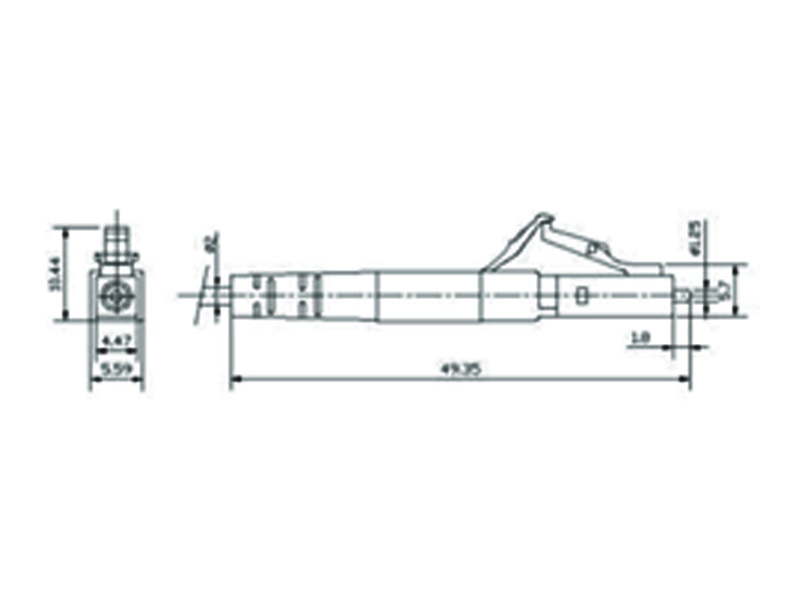

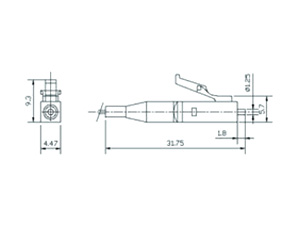

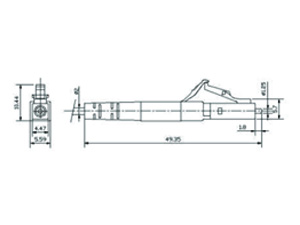

Outline Drawing
