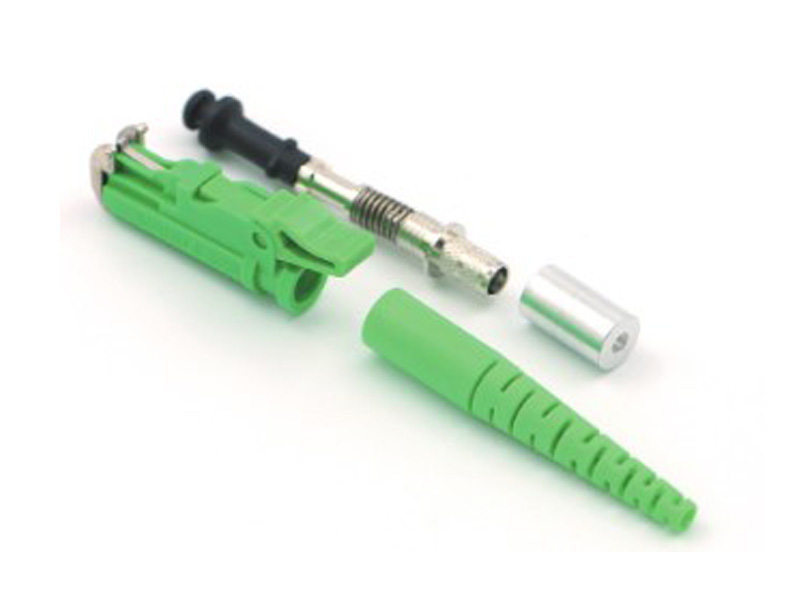

E2000 Connector

E2000 Connector
Applications
  • Gigabit Ethernet
  • Videos
  • Multimedia
  • Active device termination
  • Premise installations
  • Telecommunication networks
Features
  • Compact, pull-proof design
  • High precision alignment
  • Shutter dust cap
  • UL-rated plastic housing and boot
  • Low insertion loss and back reflection loss
  • IEC 61754-15 and GR-326 standard
Specification
Item Single mode Multimode
Insertion Loss ≤0. 30dB ≤0. 30dB
Ret urn Loss ≥50 dB (PC) ≥60 dB (APC) ≥ 30 dB
Durability < 0.20 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1.0μm 127μm, Concentricity: ≤3.0μm
125.5+1/-0μm, Concentricity: ≤1.0μm /
126.0+1/-0μm, Concentricity: ≤1.0μm /
