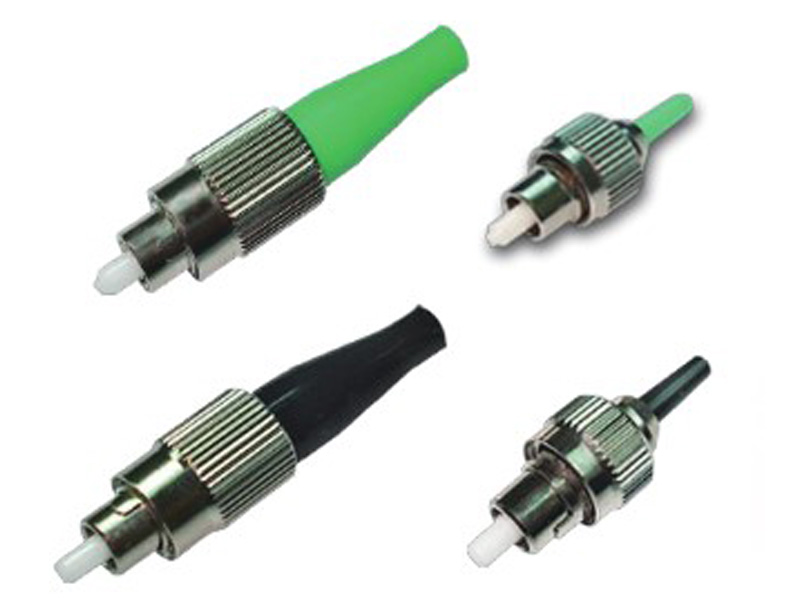

FC Connector

FC Connector
Applications
  • CATV
  • Active device termination
  • Metro
  • Test equipment
  • Local Area Networks (LANs)
  • Premise installations
  • Telecommunication networks
  • Data processing networks
  • Wide Area Networks (WANs)
Features
  • UL-rated plastic housing
  • Telcordia style boots
  • Boots in a variety of colors
  • Free-floating ceramic ferrule
  • Low insertion loss and back reflection loss
  • Precision anti-rotation key and corrosion resistant body
Specification
Item PC APC
Insertion Loss ≤0. 30dB ≤0. 30dB
Ret urn Loss ≤0. 30dB ≥60 dB
Durability <0. 20 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤0. 5μm 125.0+1/-0μm, Concentricity: ≤0. 5μm
125.3+1/-0μm, Concentricity: ≤0. 5μm /
125.5+1/-0μm, Concentricity: ≤0. 5μm 125.5+1/-0μm, Concentricity: ≤0. 5μm
126.0+1/-0μm, Concentricity: ≤0. 5μm 126.0+1/-0μm, Concentricity: ≤0. 5μm
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
