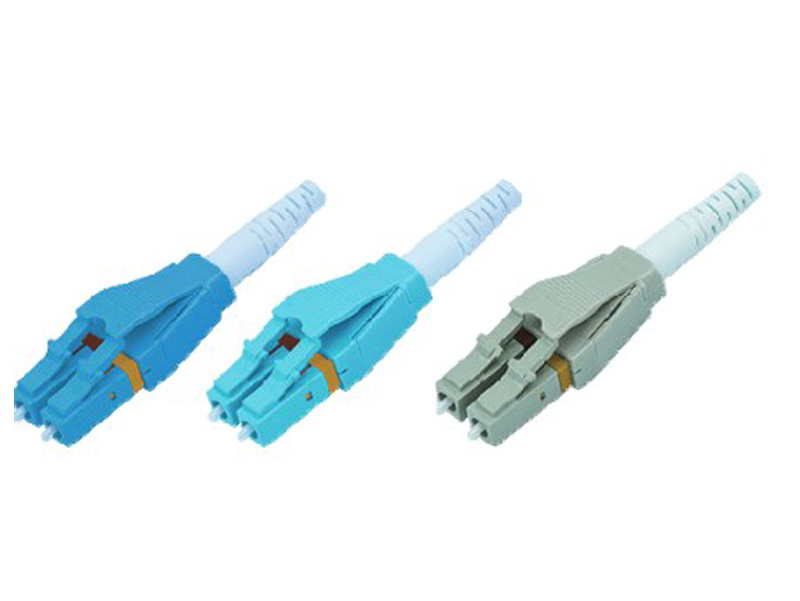

LC Uniboot Connector

LC Uniboot Connector
Applications
  • Gigabit Ethernet
  • Videos
  • Multimedia
  • Active device termination
  • Premise installations
  • Telecommunication networks
Features
  • Have two dismount gaps, easy to dismount
  • Streamline design, good aesthetic
  • Unboots connector cable management
  • Switchable Connector to change polarity
  • MINI Boot & Flex angle boot available
  • Right Angle Clip well for panel management
Specification
Item Single mode Multimode
Insertion Loss ≤0. 30dB ≤0. 30dB
Ret urn Loss ≥50 dB (PC)
≥60 dB (APC)		 --
Durability <0.20 dB typical change, 1000 matings --
Operating Temperature -40 to + 85°C -40 to + 85°C
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1.0μm 126μm, Concentricity: ≤3.0μm
125.5+1/-0μm, Concentricity: ≤1.0μm 127μm, Concentricity: ≤3.0μm
126.0+1/-0μm, Concentricity: ≤1.0μm 128μm, Concentricity: ≤3.0μm
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
