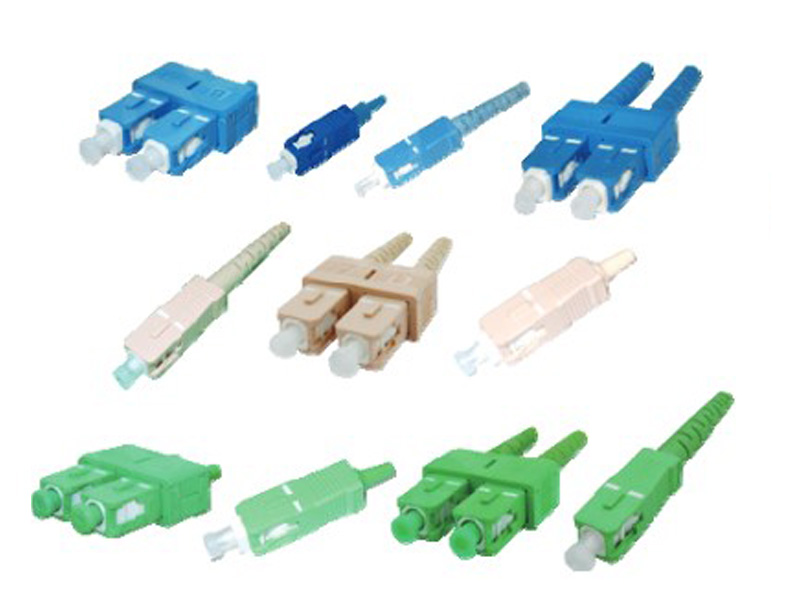

SC Connector

SC Connector
Applications
  • CATV
  • Active device termination
  • Metro
  • Test equipment
  • Local Area Networks (LANs)
  • Premise installations
  • Telecommunication networks
  • Data processing networks
  • Wide Area Networks (WANs)
Features
  • Ferrule end surface predoomed
  • UL-rated plastic housing
  • Telcordia style boots
  • Boots in a variety of colors
  • Free-floating ceramic ferrule
  • Low insertion loss and back reflection loss
  • Precision anti-rotation key and corrosion resistant body
Specification
Item PC APC Multimode
Insertion Loss ≤0.30dB <0.3dB
Ret urn Loss ≥50 dB ≥60 dB
Durability <0. 20 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C -40 to + 85°C
Tensile strength >10kg
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1.0μm 125.0+1/-0μm, Concentricity: ≤0.5μm 125μm, Concentricity: ≤3μm
125.3+1/-0μm, Concentricity: ≤1.0μm / 127μm, Concentricity: ≤3μm
125.5+1/-0μm, Concentricity: ≤1.0μm 125.5+1/-0μm, Concentricity: ≤0.5μm 128μm, Concentricity: ≤3μm
126.0+1/-0μm, Concentricity: ≤1.0μm 126.0+1/-0μm, Concentricity: ≤0.5μm /
