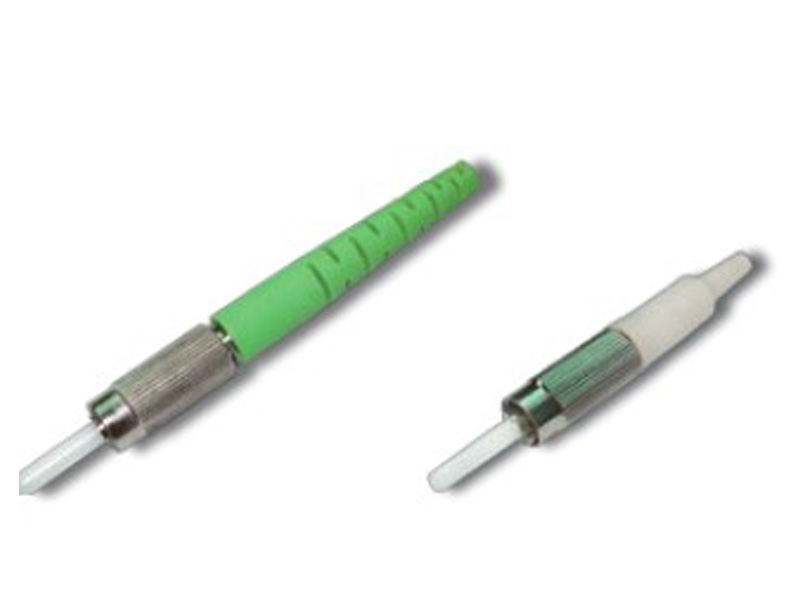

DIN Connector

DIN Connector
Applications
  • CATV
  • Active device termination
  • Telecommunication networks
  • Metro
  • Local Area Networks (LANs)·Data processing networks
  • Test equipment
  • Premise installations
  • Wide Area Networks (WANs)
Specification
Item Single mode Multimode
Insertion Loss ≤0. 30dB ≤0. 30dB
Ret urn Loss ≥50 dB (PC) ≥60 dB (APC) /
Durability 0. 1 dB typical change, 50 0 matings /
Operating Temperature -40 to + 85°C -40 to + 85°C
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1. 0μm
125.5+1/-0μm, Concentricity: ≤1. 0μm
126.0+1/-0μm, Concentricity: ≤1. 0μm 		127μm, Concentricity: ≤3. 0μm
144μmConcentricity: ≤3. 0μm
Founded in 2005, KOC Communication Company has 15 years of experience in providing a full range of network hardware & components for telecommunication applications. Within our factory, we operate first-class equipment and have an expert manufacturing history of nearly 2 decades, allowing us to provide top of the line fiber optic cables, fiber connectors, fiber optic adapters, fiber optic enclosures and cabinets, and more.
